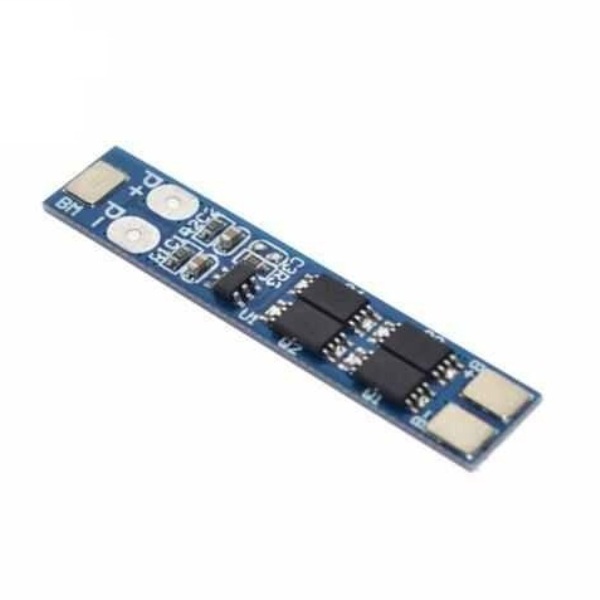

2S 7.4V 8A Li-Ion 18650 Lithium Battery Charger Protection Board

2S 7.4V 8A Li-Ion 18650 Lithium Battery Charger Protection Board

• Model: HX – 2S – A10 overcharging range: 4.25-4.35 v plus or minus 0.05 v
• Size: 41 * 8 * 2.2 mm over voltage range: 2.5-3.0 v plus or minus 0.05 v
• Maximum working current: 8 a working temperature: – 40 – + 50 ℃
• Maximum instantaneous current: 16 a storage conditions: – 40 – + 80 ℃
• Static current: less than 10uA effective life: more than 50,000 hours
• Resistance: less than 300 m Ω short circuit protection: to protect and restore must charge
• Charging voltage: 8.4 v-9v

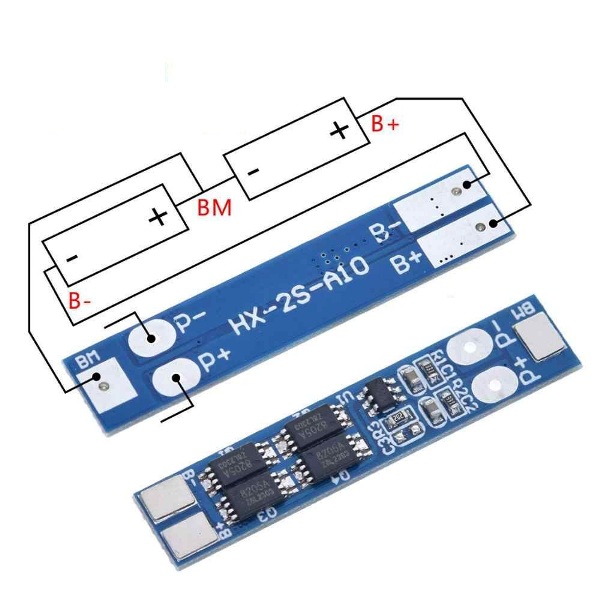

• The protection board size and device description;
• The protective plate size is 41 * 8 * 2.2 mm

• · B + battery anode;
• · B – connect battery negative terminal;
• · MMB connect battery 1 to battery 2;
• · P + charging/discharge correct poles (charging end/discharge end sharing);
• · P – charging/discharge terminal negative terminal (charging end/discharge end sharing).

Package Includes:

1 x 2S 7.4V 8A Li-Ion 18650 Lithium Battery Charger Protection Board
