Description

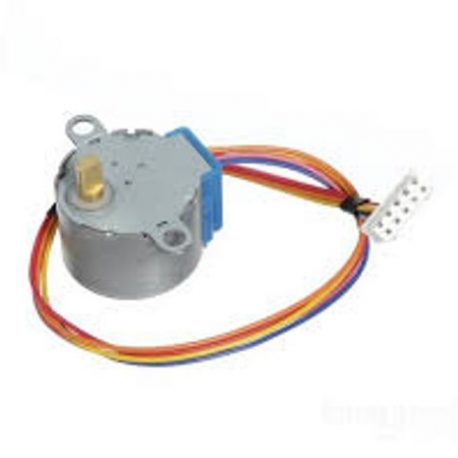

5V Unipolar Stepper motor (28BYJ-48-5V)

• Unipolar stepper with 0.1″ spaced 5-pin cable connector
• 8 steps per revolution and 1/64 geared down reduction
• Holding torque: 2 oz-force*in
• Shaft: 5mm diameter flattened
•  Diameter: 28mm
• Voltage: 5V
• No-load pull into the frequency: >600Hz
•  Phase: 4
•  No-load pull-out frequency: >1000Hz
•  Reduction ratio: 1/64
•  Pull-in torque: >34.3mN.m (120Hz)
•  Step Angle: 5.625 x 1/64
•  Self-positioning torque: >34.3mN.m
•  DCR: 200 ohm +/- 7% (25’C)
•  Temperature: <40K (120Hz)
•  Insulation resistance: >10Mohm (500V)
•  Noise: <40dB (120Hz, No load, 10cm)
•  Dielectric Strength: AC 600V / 1mA / 1s
•  Insulation Class: A
•  Cable length: 24cm
•  Suitable for guide wind deflector, portable air conditioner valve, etc

Package Includes :

1 x 5V Unipolar Stepper Motor

Images are for representation purpose only actual product may differ from actual product.
