Description

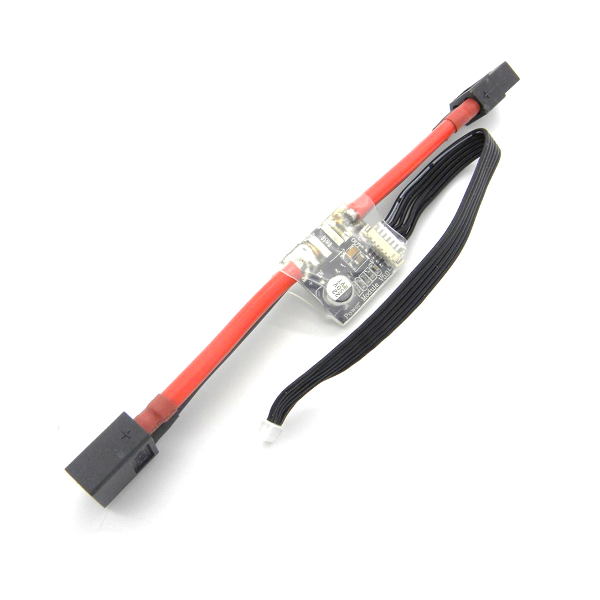

The APM/Pixhawk Power Module is a simple way of providing your APM 2.5 with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.3V and a maximum of 2.25A from 2S-6S LiPo battery. The Power Module comes completely assembled with Deans connectors, and wrapped in shrink tubing for protection.
Note: The Power Module is only designed to power APM, an RC receiver and APM accessories (GPS, 3DR radio). It is not designed to power the servos. Use your aircraft’s own ESC/BEC for that.
Features:
- Voltage and current measurement configured for 5V ADC.
- Switching regulator outputs 5.3V and 3A max.
- 6-pos DF13 cable plugs directly to APM 2.5’s ‘PM’ connector.
- Supports from 2 cell to 6 cell battery.
Package Included:
- 1 X APM/Pixhawk Power Module V6.0 Output BEC 3A XT60 Plug
Images are for representation purpose only actual product may differ from actual product.
