Description

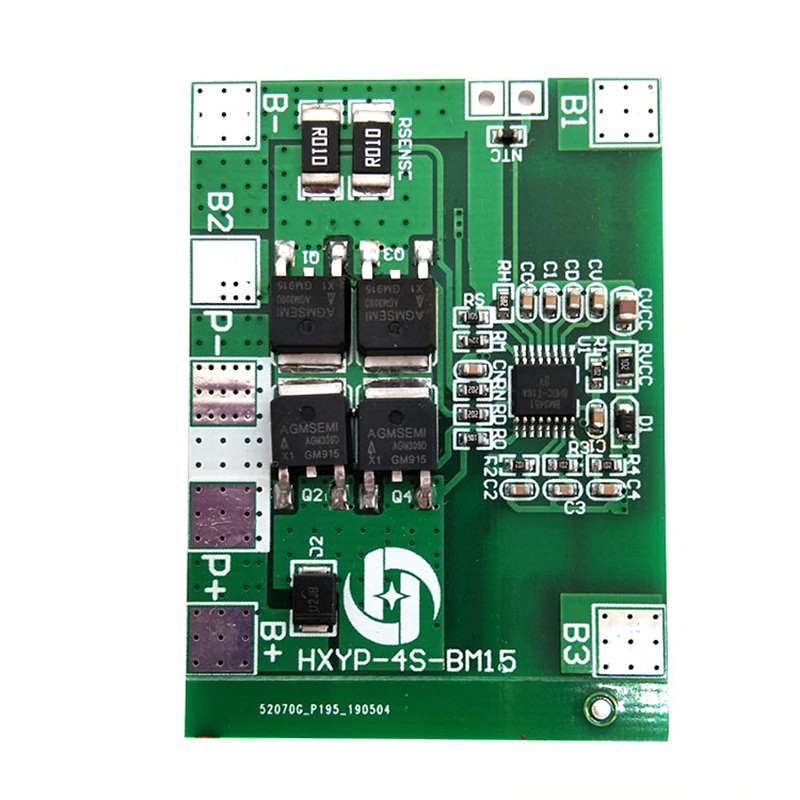

BMS LIFEPO4 4S 12.8V 8A HXYP-4S-BM15

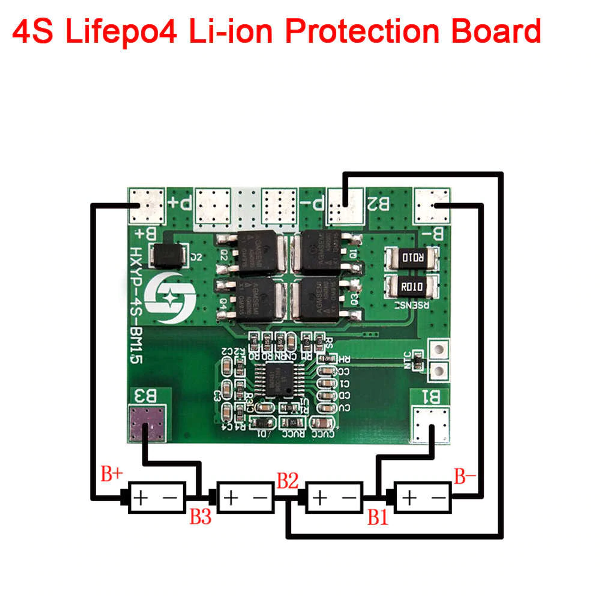

The Lifepo4 battery protection board adopts a highly integrated intelligent lithium battery protection board integrated chip, and the performance is superior to the protection board composed of discrete chips. Can complete 4 string battery charge and discharge protection, over current, short circuit, over temperature protection and equalization function.

Specifications:

• Model: HXYP-4S-BM15
• Upper operating current: 8A
• Upper transient current: 20A
• Single cell Overcharge Voltage range: 3.65V +_0.5V
• Static Current: Less than 30uA
• Charging Voltage: 14.4V – 15V
• Short circuit protection: Protected,delayed self recovery.
• size: 50mm*40mm

Package Included:

• 1 X BMS LIFEPO4 4S 12.8V 8A HXYP-4S-BM15

Images are for representation purpose only actual product may differ from actual product.
