Dual Monster Moto Shield VNH2SP30 DC Motor Driver 2x14A (Peak 30A)

850.00 + GST

Voltage Max: 16V, Maximum current rating: 30 A, Practical Continuous Current: 14 A, Current sensing available to Arduino analog pin, MOSFET on-resistance: 19 mΩ (per leg),Maximum PWM frequency: 20 kHz, Thermal Shutdown, Under voltage and Over voltage shutdown.

5 in stock

Warranty None
Shipping Same day
Discount



Available Quantity  Discount



Description

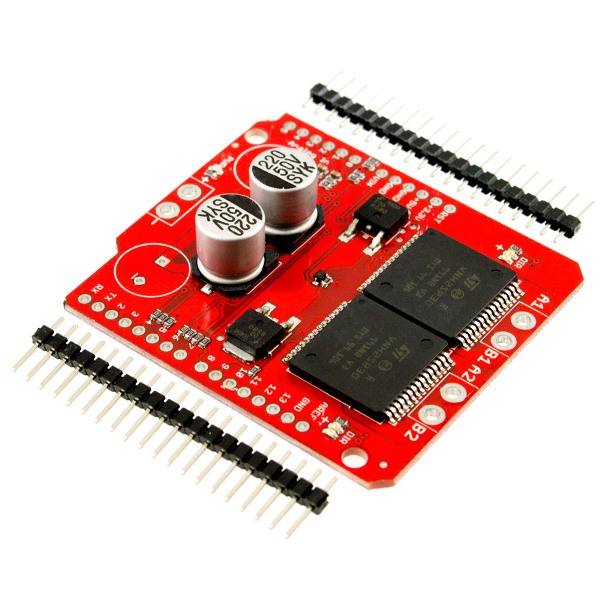

The Dual Monster Moto Shield VNH2SP30 DC Motor Driver 2x14A (Peak 30A) is essentially a ramped up version of our Ardumoto motor driver shield. For this Monster Moto Shield, It is replaced the L298 H-bridge with a pair of VNH2SP30 full-bridge motor drivers.

It is also beefed up the support circuitry so this board is capable of driving a pair of high-current motors! The VIN and motor out are pitched for our 5mm screw terminals (not included), making it easy to connect larger gauge wires.

The L298 H-bridge is no longer available in the Motor Driver Shield Monster Moto since it has been replaced for a pair of VNH2SP30 full-bridge motor drivers. The Motor Driver Shield Monster Moto has been enhanced to drive a pair of high-current motors while the VIN and motor have been adjusted for connecting larger wires more easily.

VNH2SP30 is a full bridge motor driver intended for a wide range of automotive applications. The device incorporates a dual monolithic high side driver and two low side switches.

The high side driver switch is designed using the STMicroelectronics well known and proven proprietary VIPower M0 technology which permits efficient integration on the same die of a true Power MOSFET with an intelligent signal/protection circuitry. The VIN and motor out are pitched for 5mm screw terminals, making it easy to connect larger gauge wires. INA and INB control the direction of each motor, and the PWM pins turn the motors on or off.

For the VNH2SP30, the current sense (CS) pins will output approximately 0.13 volts per amp of output current.

Images are for representation purpose only actual product may differ from actual product.
