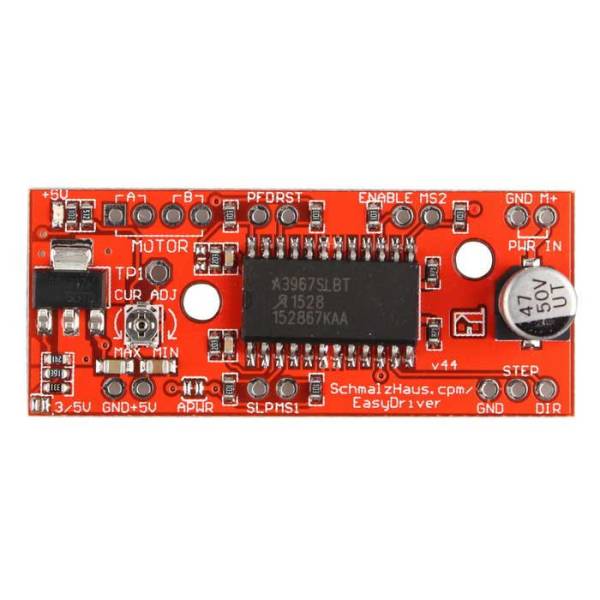

Easy Driver Stepper Motor Driver A3967

0 Reviews
10 in stock

236.00

Buy now

Product details

The Easy Driver Stepper Motor Driver A3967 is a simple to use stepper motor driver, compatible with anything that can output a digital 0 to 5V pulse (or 0 to 3.3V pulse if you solder SJ2 closed on the EasyDriver). The EasyDriver requires a 6V to 30V supply to power the motor and can power any voltage of stepper motor. The EasyDriver has an on board voltage regulator for the digital interface that can be set to 5V or 3.3V. Connect a 4-wire stepper motor and a microcontroller and you’ve got precision motor control! EasyDriver drives bi-polar motors, and motors wired as bi-polar. I.e. 4,6, or 8 wire stepper motors.



The Stepper Motor Driver requires a 7V to the 30V power supply for a motor. The module has an onboard voltage regulator for the digital interface that can be set to 5V or 3.3V.

Features:

  • A3967 Micro stepping Driver
  • Compatible with 4, 6, and 8 wire stepper motors of any voltage
  • Adjustable current control from 150mA/phase to 700mA/phase
  • Power supply range from 6V to 30V. The higher the voltage, the higher the torque at high speeds
Package Includes :

1 x Stepper Motor Driver A3967
