Product details

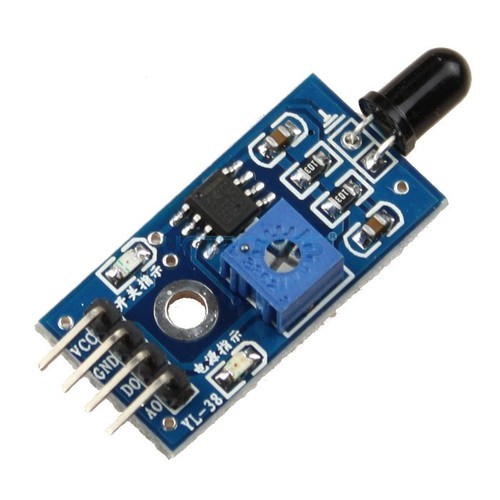

Fire Flame Sensor Module. Detects fire and outputs digital and analog signal. The digital signal can have a trigger level. LEDs indicate power and output signal
This Fire Flame Sensor Module can be used to detect fire source or other light sources of the wavelength in the range of 760nm – 1100nm. It is based on the YG1006 sensor which is a high speed and high sensitive NPN silicon phototransistor. Due to its black epoxy, the sensor is sensitive to infrared radiation. Sensor can be a great addition in a fire fighting robot, it can be used as a robot eyes to find the fire source. When the sensor detects flame the Signal LED will light up and the D0 pin goes LOW.
Features:
- High Photo Sensitivity
- Fast Response Time
- Sensitivity adjustable
Specification:
- Woriking voltage: 3.3v – 5v
- Detect range: 60 degrees
- Digital/Analog output
- On-board LM393 chip
Package Includes:
1 xFire Flame Sensor Module
