Description

This is MPU-9250 9-DOF Attitude Gyro Magneto Accelerator Sensor Module. GY-87 MPU-9250 9 axis attitude gyro is a 9 degree of freedom (DOF) device which incorporates an MPU6050 accelerometer and gyro chip, and HMC5883L digital compass.

MPU6050 :

The MPU6050 devices combine a 3-axis g yroscope and a 3-axis accelerometer on the same silicon together with an onboard Digital Motion Processor (DMP) capable of processing complex 9-axis MotionFusion algorithms.

The parts’ integrated 9-axis MotionFusion algorithms access external magnetometers or other sensors through an auxiliary master I2C bus, allowing the devices to gather a full set of sensor data without intervention from the system processor. Are the devices offered in the same 4x4x0.9 mm QFN footprint and pinout as the current MPU-3000? the family of integrated 3-axis gyroscopes, providing a simple upgrade path and making it easy to fit on space-constrained boards.

The InvenSense Motion Apps Platform that comes with the MPU-6050 abstracts motion-based complexities, offloads sensor management from the operating system and provides a structured set of APIs for application development. For precision tracking of both fast and slow motions, the parts feature a user-programmable gyro full-scale range of ±250, ±500, ±1000, and ±2000°/sec (DPS) and a user-programmable accelerometer full-scale range of ±2g, ±4g, ±8g, and ±16g.

Applications

• FPV, RC and Robots systems
• GPS navigation systems
• Impact recognition and logging
• Gaming and virtual reality input devices
• Motion-activated functions
• Intelligent power saving for handheld devices
• Vibration monitoring and compensation
• Free-fall detection
• 6D-orientation detection

Package Includes :

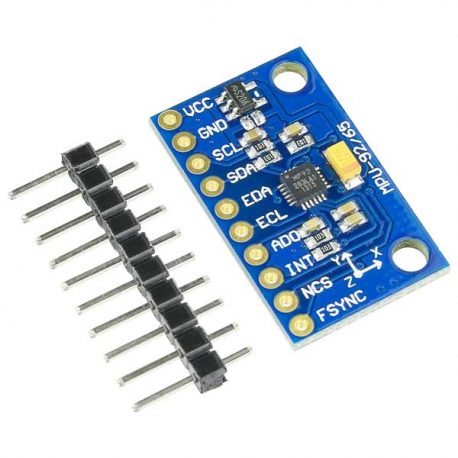

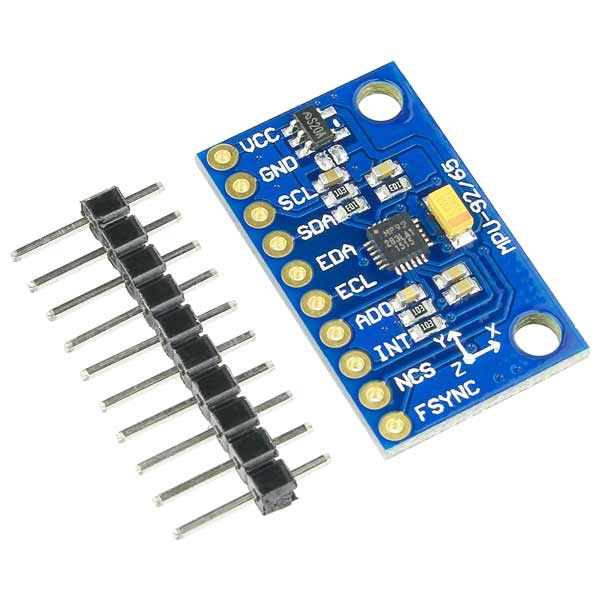

1 x MPU-9250 9-DOF Attitude Gyro Magneto/Accelerator Sensor Module

Images are for representation purpose only actual product may differ from actual product.
