Nextion BASIC NX4832T035-3.5″ HMI TFT LCD Touch Display Module is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nexion is mainly applied to the Internet of thing (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.
Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. It has been noticed that most engineers spend much time on application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.
It’s easy to adapt Nextion family HMI to existing projects. Users just need to provide it a UART.
3.5″ Basic Nextion NX4832T035 HMI TFT Intelligent Display Module is a powerful 3.5” HMI, which is a member of Nextion family.
- 480 x 320 Resolution
- RGB 65K true to life colors
- TFT screen with integrated resistive touch panel
- 4 pin TTL serial interface
- 16M Flash memory for User Application Code and Data
- Onboard micro-SD card slot for firmware upgrade
- Visual Area: 73.44mm(L)×48.96mm(W)
- Adjustable Brightness: 0~180 nit, the interval of adjustment is 1%
- 5V500mA DC recommended the power supply
- 5V145mA power consumption
- Certificates: CE/EMC, RoHS(certificates)
For technical support, please open a ticket on Itead Support System.

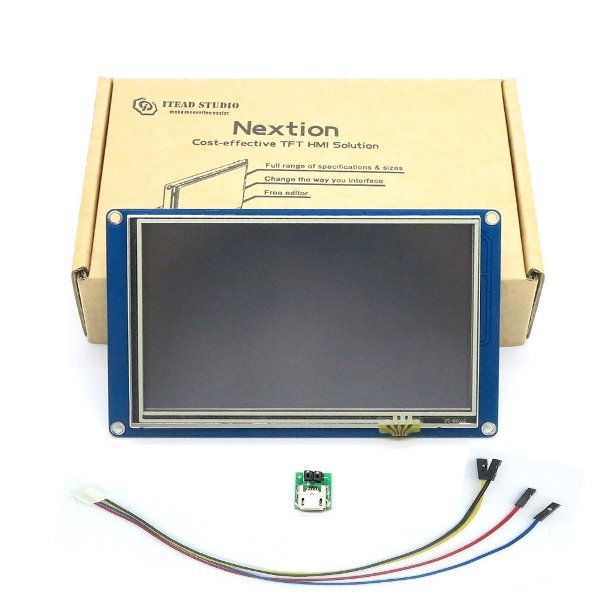

- 1 x Nextion BASIC NX4832T035-3.5″ HMI TFT LCD Touch Display Module
- 1 x Connecting Wires
- 1 x Power Supply Test Board
Images are for representation purpose only actual product may differ from actual product.
