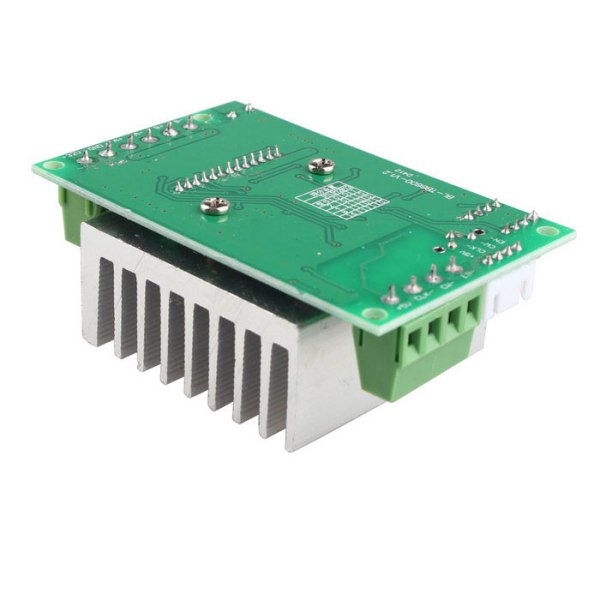

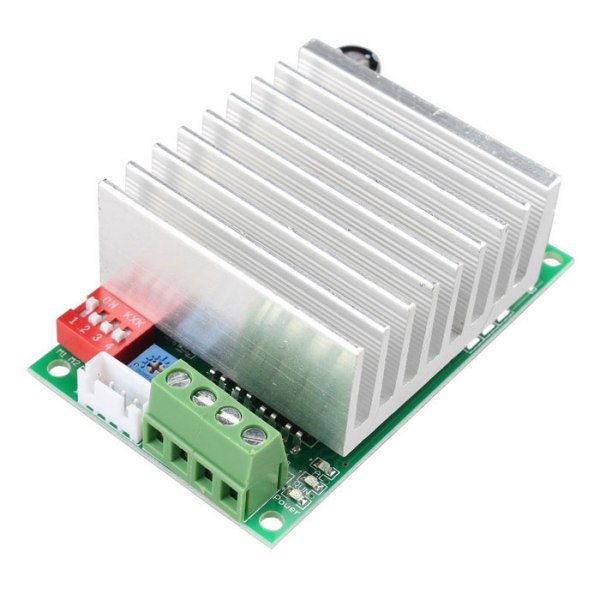

TB6600 4.5A CNC Single-Axis Stepper Motor Driver Board Controller

590.00 + GST

Toshiba’s new high current, high voltage TB6600HG new original chip, there are low-pressure shut-off, overheating parking and over-current protection circuit, short-circuit protection and increased compared to TB6560.

4 in stock

Price 18% GST Extra
Warranty None
Shipping Same day
Discount



Available Quantity  Discount



Description

TB6600 4.5A CNC Single-Axis Stepper Motor Driver Board Controller provides maximum 4.5A output current.

TB6600 comes with output sort-circuit protection, Low-Pressure shut-off, Overheating parking and over-current protection.

Output current is infinitely adjustable to meet various applications.

Technical specifications:

  • Operating voltage DC 10V-45V. (32VDC Recommended)
  • Rated maximum output reached: ± 4.5A.
  • For 4.2A 42,57,86 within the two-phase / four-phase / four-wire / six-wire stepper motor.
  • Subdivision: full step, half step, 1/4-step, step 1/8, 1/16-step, up to 16 segments.
  • Volume: Width Length 82 * 50 * high 35 (MM)

Features:

High current, high voltage TB6600HG new original chip, there are low-pressure shut-off, overheating parking and over-current protection circuit, short-circuit protection and increased compared to TB6560

  • High-speed optical coupling 6N137, ensure high speed without losing step
  • The output current is infinitely adjustable to meet various application requirements
  • Automatic half current function. And a semi-automatic flow switch, easy to use
  • The use of high-speed optical coupling 6N137 ensure high-speed without losing step
  • Printed on the back panel are subdivided setup instructions
  • Used to increase the heat sink, good heat dissipation
  • Output short-circuit protection
  • Using common anode input mode, there are two input terminals, wiring more convenient

Images are for representation purpose only actual product may differ from actual product.
