Product details

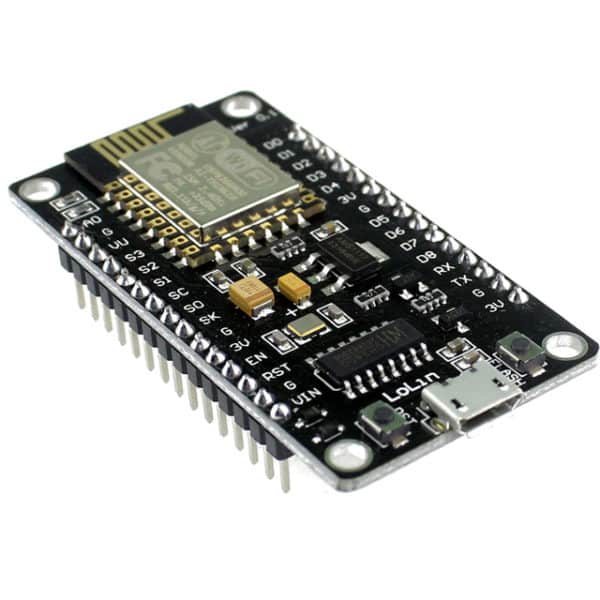

This Wireless Module CH340 NodeMcu is a IoT Module based on ESP8266 wifi Module. NodeMCU uses Lua Scripting language and is an open source Internet of Things (IoT) platform. This modules has CH340g USB to TTL IC.
- Wireless 802.11 b / g / n standard
- Support STA / AP / STA + AP three operating modes
- Built-in TCP / IP protocol stack to support multiple TCP Client connections (5 MAX)
- D0 ~ D8, SD1 ~ SD3: used as GPIO, PWM, IIC, etc., port driver capability 15mA
- AD0: 1 channel ADC
- Power input: 4.5V ~ 9V (10 VMAX), USB-powered
- Current: continuous transmission: ≈70mA (200mA MAX), Standby: <200uA
- Transfer rate: 110-460800 bps
- Support UART / GPIO data communication interface
- Remote firmware upgrade (OTA)
- Support Smart Link Smart Networking
- Working temperature: -40 ℃ ~ + 125 ℃
- Drive Type: Dual high-power H-bridge driver
Package Includes:
1 x Wireless Module CH340 NodeMcu V3 Lua WIFI ESP8266 esp-12e
