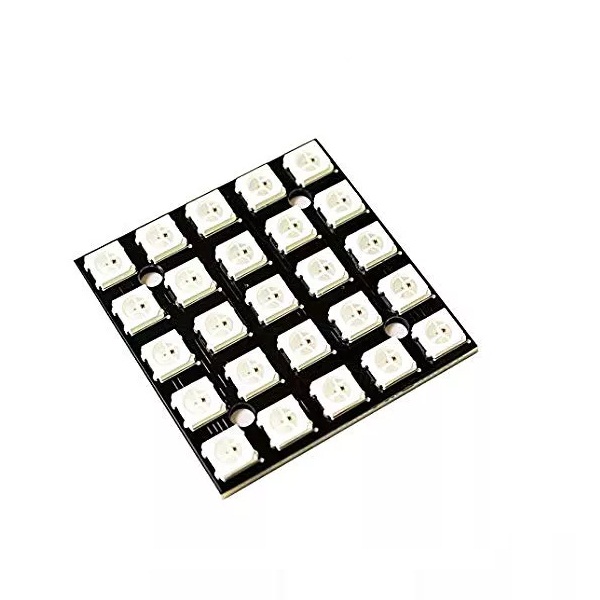

WS2812B 5X5 Digit RGB LED Full Color Driver 25-BIT Development Board

WS2812B 5X5 Digit RGB LED Full Color Driver 25-BIT Development Board

Features:

• Intelligent reverse connection protection, reverse power connection will not damage the IC.
• The IC control circuit shares a power supply with the LED point source.
• The control circuit and RGB chip are integrated in a 5050 package component to form a complete external control pixel.
• Built-in signal shaping circuit, after any pixel receives the signal, it is waveform-shaped and then output to ensure that the line waveform distortion will not be accumulated.
• Built-in power-on reset and power-down reset circuit.
• The three primary colors of each pixel can realize 256 levels of brightness display, complete the true color display of 16777216 colors , and the scanning frequency is not less than 400Hz/s .
• Serial cascade interface, which can receive and decode data through one signal line.
• There is no need to add any circuit when the transmission distance of any two points is less than 5 meters.
• When the refresh rate is 30 frames/second, the number of cascades is not less than 1024 points.
• Data transmission speed can reach 8 00Kbps .
• The color of light is highly consistent and cost-effective

Package Included:

• 1 X WS2812B 5X5 Digit RGB LED Full Color Driver 25-BIT Development Board
