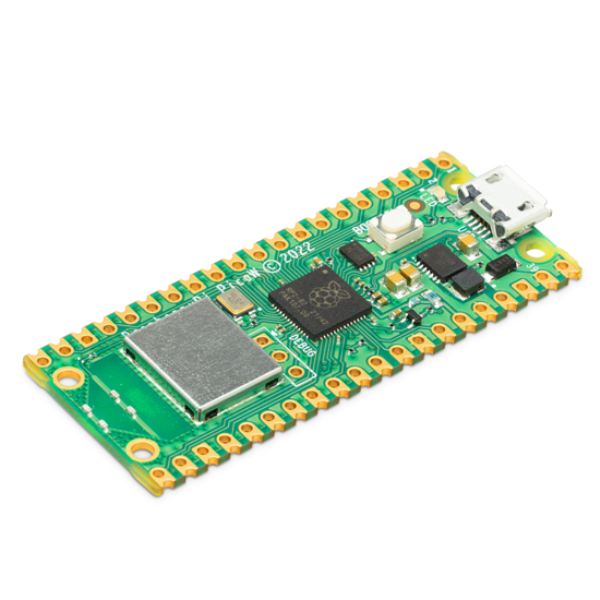

Raspberry Pi Pico W

767.00

  • RP2040 microcontroller with 2MB of flash memory
  • On-board single-band 2.4GHz wireless interfaces (802.11n)
  • Micro USB B port for power and data (and for reprogramming the flash)
  • 40 pin 21mmx51mm ‘DIP’ style 1mm thick PCB
  • Exposes 26 multi-function 3.3V general purpose I/O (GPIO)
  • 23 GPIO are digital-only, with three also being ADC capable

10 in stock

Category:

Description

Raspberry Pi Pico W comes with a fully certified module on board featuring 2.4GHz 802.11n wireless LAN, making it the perfect solution for loT applications and projects requiring wireless communication.

This Pico W has been improved by including a 2.4GHz wireless interface while keeping the same form factor as the previous one, and a New variant of PICO has arrived with the name Raspberry PI PICO W and included the significant features.

At the heart of each product is RP2040, a Raspberry Pi-designed chip, which features two ARM Cortex-M0+ cores clocked at 133MHz; 256KB
RAM; 30 GPIO pins; and a broad range of interfacing options. This is paired with 2MB of onboard QSPI Flash memory for code and data
storage. Raspberry Pi Pico W and Pico WH incorporate an Infineon CYW43439 wireless chip. CYW43439 supports IEEE 802.11 b/g/n wireless LAN,
and Bluetooth 5.2; of these, only wireless LAN is supported at launch.

Features:

  • RP2040 microcontroller with 2MB of flash memory
  • On-board single-band 2.4GHz wireless interfaces (802.11n)
  • Micro USB B port for power and data (and for reprogramming the flash)
  • 40 pin 21mmx51mm ‘DIP’ style 1mm thick PCB with 0.1″ through-hole pins also with edge castellations
  • Exposes 26 multi-function 3.3V general purpose I/O (GPIO)
  • 23 GPIO are digital-only, with three also being ADC capable
  • Can be surface mounted as a module
  • 3-pin ARM serial wire debug (SWD) port
  • Simple yet highly flexible power supply architecture
  • Various options for easily powering the unit from micro USB, external supplies or batteries
  • High quality, low cost, high availability
  • Comprehensive SDK, software examples, and documentation
  • Dual-core Cortex M0+ at up to 133MHz
  • On-chip PLL allows variable core frequency
  • 264kByte multi-bank high-performance SRAM

Package Includes:

  • 1 x Raspberry PI Pico W

Images are for representation purpose only actual product may differ from actual product.
