TEC1-12706 Thermoelectric Peltier Cooler – 12V, 60W

270.00 + GST

10 in stock

Warranty None
Shipping Same day
Discount



Available Quantity  Discount



Category:

Description

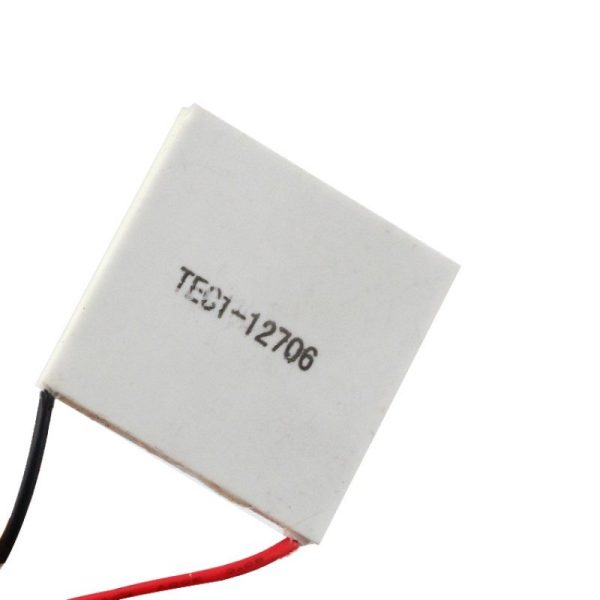

TEC1-12706 Thermoelectric Peltier Cooler – 12V, 60W

Get ice cold in minutes or heat to boiling by simply reversing the polarity, used for numerous applications from CPU coolers to alternate power sources, or even for your own DIY project, what you can do with this Peltier module is limitless. Module consist primarily of semiconductor material sandwiched between ceramic plates and no moving parts.

  • Model: TEC1-12706 Thermoelectric Peltier
  • Size 40x40x3.9mm (WxDxH), weight 27g
  • Imax 6.4A, Umax 15.4V, R = 1.98 ohm, 127 couples
  • TEC1-12706 max. = 68°C, Qmax 63.0W
  • Color : White
  • Operates from 0~15.2V and 0~6A
  • Operates Temperature: -30C to 70C
  • Power consumption: Max 60W
  • Peltier module must be used in conjunction with a heat sink to avoid burn
  • Fitted with 6-inch insulated leads
Package Includes:

1 x TEC1-12706 Thermoelectric Peltier Cooler – 12V, 60W

Images are for representation purpose only actual product may differ from actual product.
