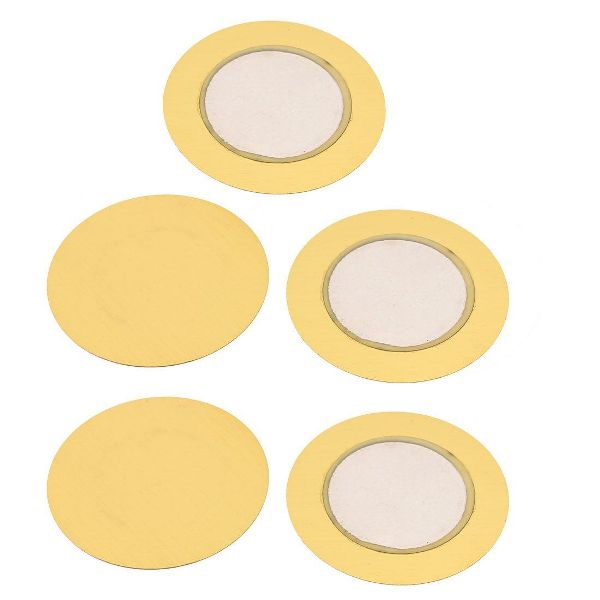

35mm Piezo Plate-Element-5Pcs.

100.00 + GST

10 in stock

Price 18% GST Extra
Warranty None
Shipping Same day
Discount



Available Quantity  Discount



Description

This 35mm piezo plate element are used various electronic Project like foot generated energy.

  • 35mm wide brass piezoelectric discs.
  • These are perfect for using as touch-sensors, electronic drum triggers, buzzers, or making your own contact mics.
  • To use, simply solder positive to the center and ground to the brass disc.
  • The actual piezoelectric material in the center of the brass resonating disc measures approx. 24mm wide.
  • Profile is approx. 0.52mm thick.
  • Specifications at 25°C
  • Resonant Frequency: 2.9 ± 0.5 KHz
  • Resonant Resistance: 350Ω max.
  • Capacitance: 32 000pF ± 30% at 100Hz
  • Input Voltage: 30Vp-p max.
  • Operating Temperature: -20 to +50°C Storage Temperature: -20 to +60°C

Images are for representation purpose only actual product may differ from actual product.
