ADS1115 16-Bit ADC – 4 CH With Programmable Gain Amplifier

350.00 + GST

  1. Wide supply range: 2.0V to 5.5V
  2. Programmable data rate: 8SPS to 860SPS
  3. LowCurrent Consumption: Continuous Mode: Only 150µA Single-Shot Mode: Auto Shut-Down
  4. It has Internal low-drift voltage reference
  5. Internal Oscillator.
  6. Internal PGA.

4 in stock

Warranty None
Shipping Same day
Discount



Available Quantity  Discount



Categories: ,

Description

This is ADS1115 16-Bit ADC – 4 Channel with Programmable Gain Amplifier. For micro-controllers without an analog-to-digital converter or when you want a higher-precision ADC, the ADS1115 provides 16-bit precision at 860 samples/second over I2C. The chip can be configured as 4 single-end input channels or two differential channels. As a nice bonus, it even includes a programmable gain amplifier, up to x16, to help boost up smaller single/differential signals to the full range. We like this ADC because it can run from 2V to 5V power/logic, can measure a large range of signals and it’s super easy to use. It is a great general purpose 16-bit converter.

The chip’s fairly small so it comes on a breakout board with ferrites to keep the AVDD and AGND quiet. Interfacing is done via I2C. The address can be changed to one of four options (see the datasheet table 5) so you can have up to 4 ADS1115’s connect on a single 2-wire I2C bus for 16 single end inputs.

To get you start, we have example code for both the Raspberry Pi (in our Adafruit Pi Python library) and Arduino (in our ADS1X15 Arduino library repository) Simply connect GND to ground, VDD to your logic power supply, and SCL/SDA to your microcontroller’s I2C port and run the example code to start reading data.

Pin Description:

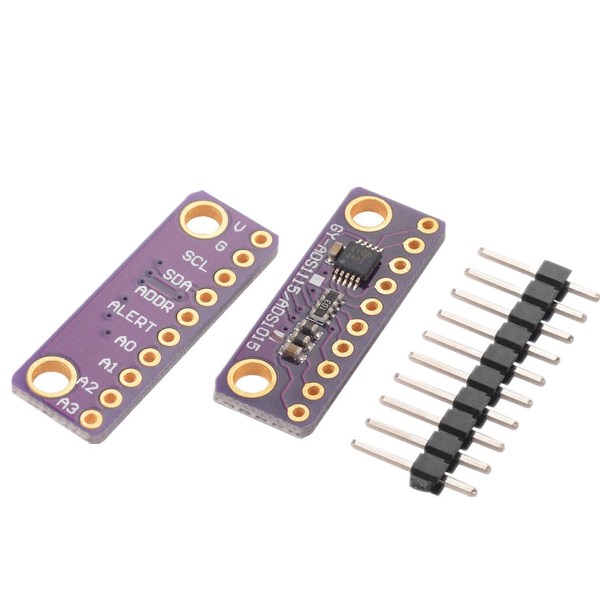

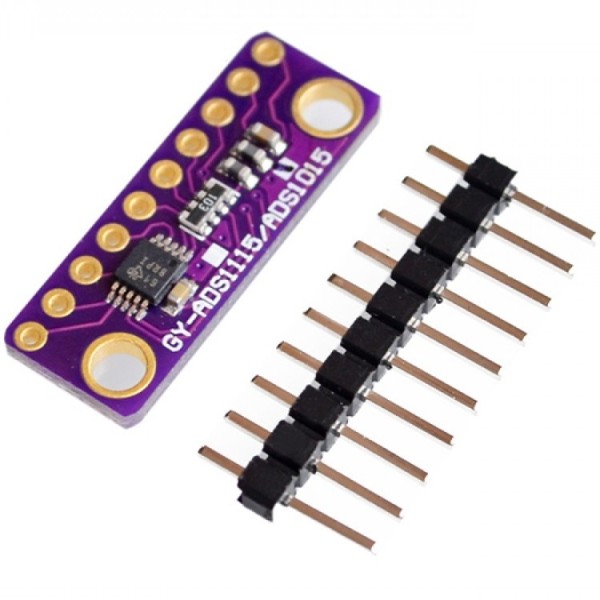

ADS1115 16-Bit ADC - 4 Channel with Programmable Gain Amplifier (Robu.in)

Features :

  • Wide supply range: 2.0V to 5.5V
  • Programmable data rate: 8SPS to 860SPS
  • It has an Internal low-drift voltage reference
  • Internal Oscillator.
  • Internal PGA.
  • I2C INTERFACE : Pin-Selectable Addresses.
  • Four single ends Or Two differential inputs.
  • Programmable Comparator.
  • This board/chip uses I2C 7-bit addresses between 0x48-0x4B, selectable with jumpers
  • LowCurrent Consumption: Continuous Mode: Only 150µA Single-Shot Mode: Auto Shut-Down

Package Includes :

1 x ADS1115 16-Bit ADC – 4 Channel with Programmable Gain Amplifier
