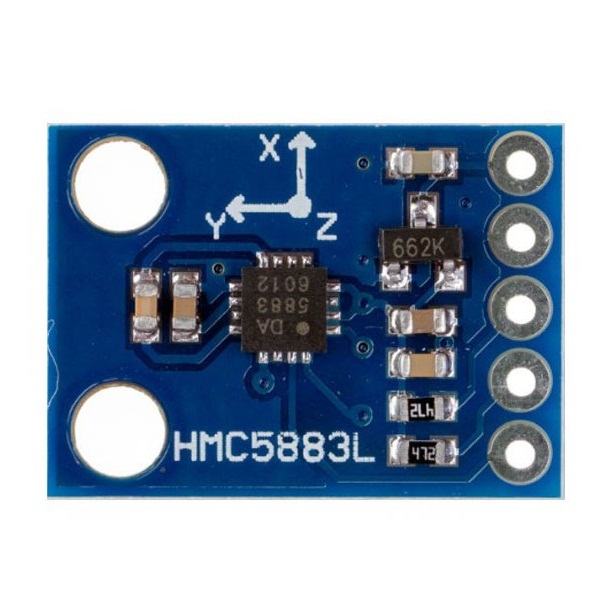

HMC5883L 3-Axis Digital Compass Magnetometer Module


9 in stock

Warranty None
Shipping Same day


Available Quantity  Discount



This HMC5883L Digital Compass Magnetometer is triple axis compass magnetometer sensor module with power supply of 3.3V or 5V. The module size is: 16mm*18mm. There is a 2.54mm pin pitch. It comes with a pin header.

  • Using a magnetometer can be a little tricky, especially if you are unsure about the formulas to use to get the correct bearing and when other magnetic objects are interfering with your signal. You could download a arduino library for this module, which will also be compatible with other HMC5883L breakout boards.

Feature :

  • Immersion Gold PCB, machine welding process to ensure quality.
  • Name: HMC5883L module (three-axis magnetic field module).
  • Use the chip: HMC5883L.
  • Power supply: 3V ~ 5V.
  • Communication modes: standard IIC communication protocol (3.3V~5V TTL).
  • Measuring range: ± 1.3-8 Gauss.
  • Size: 14mm x 13mm
Package Includes:

1 x HMC5883L 3-Axis Digital Compass Magnetometer Module

Images are for representation purpose only actual product may differ from actual product.
