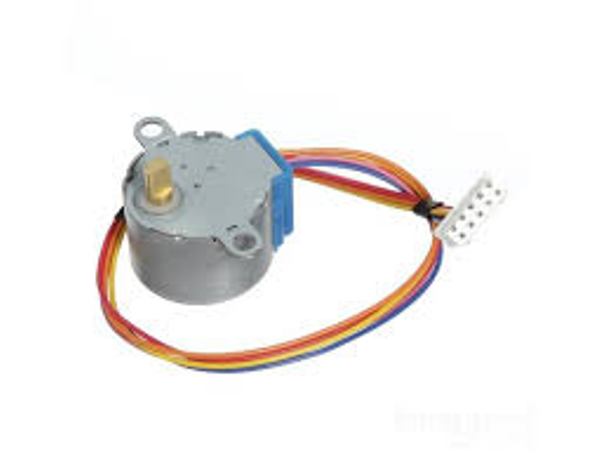

12V Unipolar Stepper Motor (28BYJ-48-12V)


This 12V DC 28BYJ-48 Stepper Motor is small, inexpensive and high-quality geared step motor. The 28BYJ-48 Stepper Motor and ULN2003 Stepper Motor Driver is a widely popular combination of the stepper motor and stepper driver, because of the stability and reliability of the system.

5 in stock

Warranty None
Shipping Same day


Available Quantity  Discount



12V Unipolar Stepper motor (28BYJ-48-12V)

  • Unipolar stepper with 0.1″ spaced 5-pin cable connector
  • 8 steps per revolution and 1/64 geared down reduction
  • Holding torque: 2 oz-force*in
  • Shaft: 5mm diameter flattened
  •  Diameter: 28mm
  • Voltage: 12V
  • No-load pull into the frequency: >600Hz
  •  Phase: 4
  •  Insulation Class: A
  •  Cable length: 24cm
  •  Suitable for guide wind deflector, portable air conditioner valve, etc
Package Includes :
  • 1 x 12V Unipolar Stepper Motor

Images are for representation purpose only actual product may differ from actual product.
