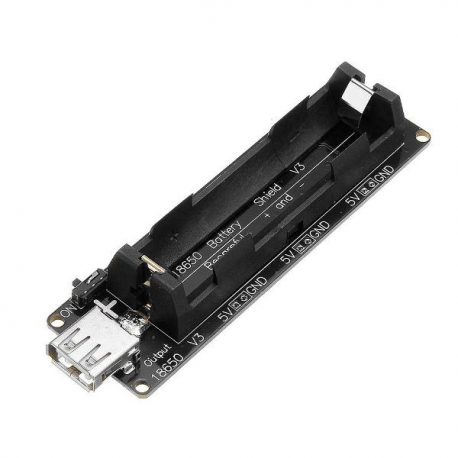

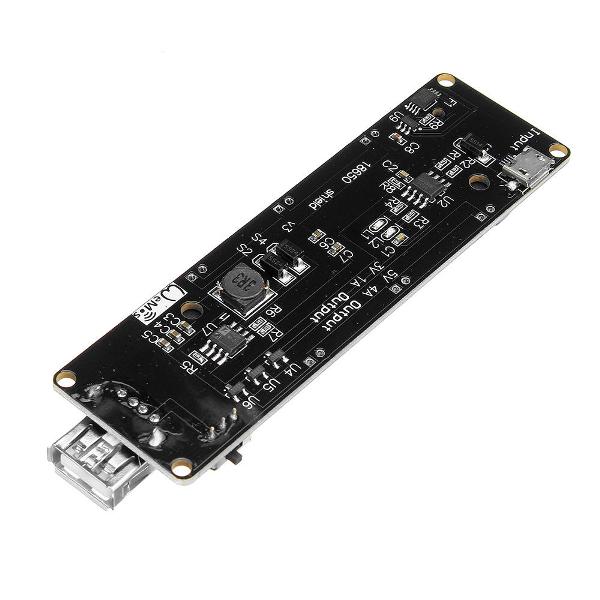

18650 Battery Charge Shield V3 For Raspberry Pi Arduino

295.00

This 18650 Battery Charge Shield V3 is for Arduino, Raspberry Pi,esp8266 or Sensors with protection board.The output current can reach upto 2A.

5 in stock

Warranty    – None
Shipping       – Same day
Discount      –



Available Quantity  Discount



Description

This 18650 Battery Shield For Raspberry pi can be used to power 5V dc supply for raspberry pi model.
This 18650 Battery Charge Shield is suitable for 18650 battery only
This module can be powered Arduino or for raspberry pi and sensor at the same time.This module output current up to 2A.
(This product does not contain 18650 battery installation, be careful of the battery positive and negative when install, do not reverse. Please follow the + – direction on the PCB and do not follow the positive and negative directions on the battery holder)
Features:
  •  With over-charging protection and over-discharge protection
  •  Micro USB charging interface
  •  Charge current: 0.5A
  •  1 switches to control the USB output
  •  Input voltage: 5 ~ 8V
  •  Three 3V 1A output interface
  •  Three 5V 2A output interface
  •  LED light, green for full of charge, red for under charging
Package includes:
1 x 18650 Battery Shield For Raspberry

Images are for representation purpose only actual product may differ from actual product.
