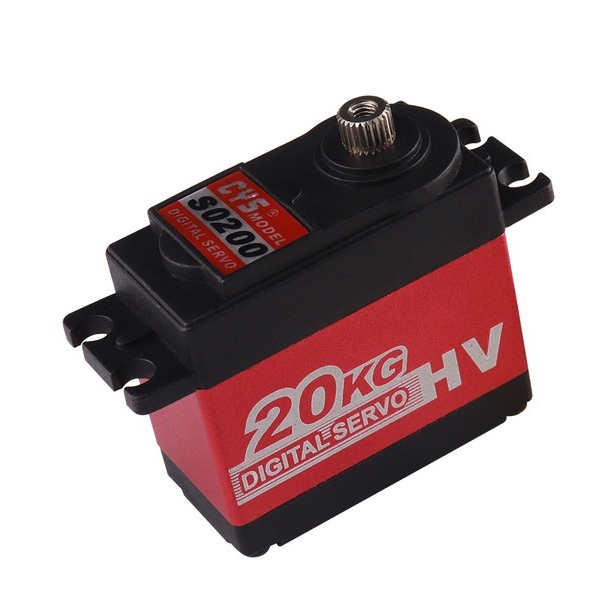

20Kg High Torque Waterproof Digital Metal Gear Servo

1,416.00

  • Description : 20Kg waterproof servo for 1/10 RC car steering
  • Size : 55*20*43MM
  • Torque : 18Kg.cm ~ 20Kg.cm
  • Speed : 0.13sec ~ 0.11sec/60 degree
  • Voltage : 6.0Volts ~7.4Volts dc

2 in stock

Warranty    – None
Shipping       – Same day
Discount      –



Available Quantity  Discount



Category:

Description

20Kg High Torque Waterproof Digital Metal Gear Servo provides 20kg torque at 7.4Vdc & 16.5kg at 6.0Vdc.

  • Brown/Black = Negative
  • Red = Positive
  • Orange/White = Signal



Type

Digital
Weight 62g ± 1g
Size 55*20*43mm
Control System (+)Pulse Width Control 1500usec Neutral
Operating Voltage 6.0~7.4Volts
Operating Temperature Range (-)10 to +50 degree C
Operating Speed (6.0V) 0.14sec/60° at no load
Operating Speed (7.4V) 0.12sec/60° at no load
Stall Torque (6.0V) 18kg.cm
Stall Torque (7.4V) 20kg.cm
Operating Angle 45deg.one side pulse traveling 500 usec
Direction Anticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V) 20mA/idle and 100mA no load operating
Current Drain (7.4V) 20mA/idle and 150mA no load operating
Stall Current 2.5A/2.8A
Dead Band Width 4usec
Bearing Type Dual ball bearing
Horn gear spline 25T
Gear Type Metal
Connector Wire Length 300mm±5mm



DataSheet

Package Included:

  • 1 X 20Kg High Torque Waterproof Digital Metal Gear Servo

Images are for representation purpose only actual product may differ from actual product.
