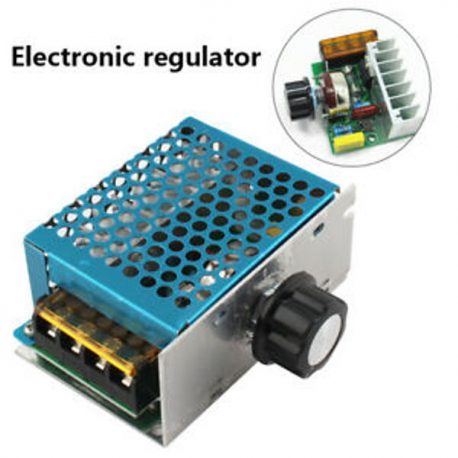

4000W 220V AC SCR Voltage Regulator Dimmer Electric Motor Speed Controller

450.00 + GST

This controller uses novel bi-directional high-power SCR. It can be convenient adjust current up to 25A, solve the over current problem of the heating wire. The output voltage is adjusted anywhere between 0V ~ 220V for use with electrical appliances.It can use to such as electric stove, water heater tune thermal, lighting dimmer, etc. It can achieve dimming, thermostats, pressure regulator effect.

2 in stock

Warranty    – None
Shipping       – Same day
Discount      –



Available Quantity  Discount



Description

4000W 220V AC SCR Voltage Regulator Dimmer Electric Motor Speed Controller

Feature:
  • Work Voltage: AC 220V
  • Maximum power: 4000W
  • Voltage Regulation: AC 0-220V
  • Size: L85mm x W60mm x H40mm rotation hole 6mm
  • SCR Model: BT-800B
Instruction:
The role of the product access AC 0-220V, output is connected to the electric wire or electrical appliances, rotary potentiometer, can play speed, pressure, thermostat
Suitable for:
Using the new two-way high-power thyristor, because the design maximum current can reach 20A, a good solution to the problem of over-current electric wire in the case of cooling caused by the resistance is too small, can easily adjust the output voltage at DC0 ~ any adjustment between DC220V
Precaution:
Note that the load can not exceed the specified maximum power, otherwise it will burn the module and electrical.
Try using a resistive load, inductive capacitive load power to be greatly reduced.
Do not try to open or modify regulator.
Package included:
1 x 4000W 220V AC SCR Voltage Regulator Dimmer Electric Motor Speed Controller

Images are for representation purpose only actual product may differ from actual product.
