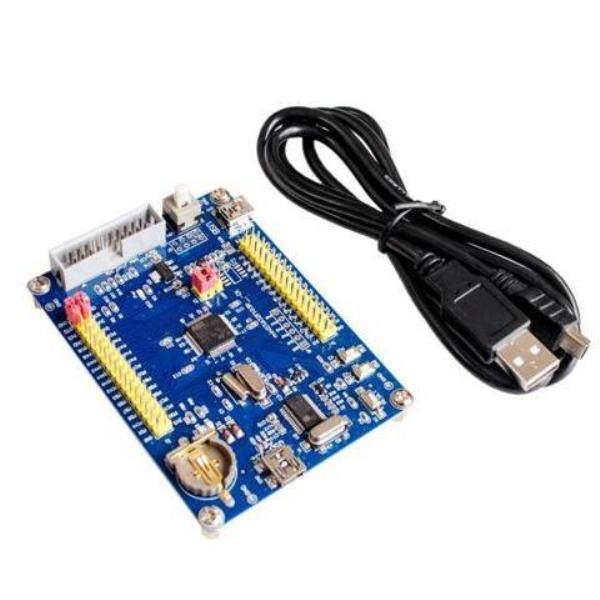

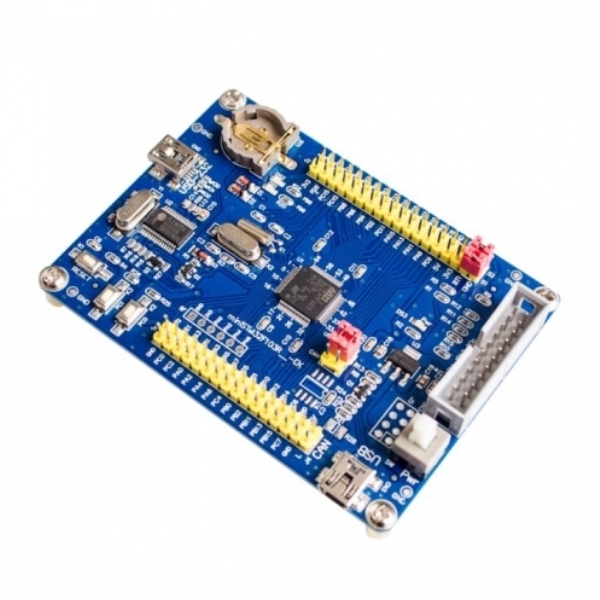

ARM Cortex M3 Development Board STM32F103RBT6

The ARM Cortex M3 Development Board STM32F103RBT6  processor has been developed to provide a low-cost platform that meets the needs of MCU implementation, with a reduced pin count and low power consumption, while delivering outstanding computational performance and an advanced system response to interrupts. The ARM Cortex-M3 32-bit RISC processor features exceptional code efficiency, delivering high performance which is expected from an ARM core in the memory size usually associated with 8-bit and 16-bit devices. The STM32F103 Performance Line family has an embedded ARM core and is therefore compatible with all ARM tools and software. It combines the high-performance ARM Cortex-M3 CPU with an extensive range of peripheral functions and enhanced I/O capabilities. This is a good start-up board for learning the new ST Cortex-M3 based microcontrollers STM32F103RBT6. The headers with all microcontrollers port output allow you to easily implement your own experiments and add-ons.

Features of the ARM Cortex M3 Development Board STM32F103RBT6

• STM32F103RBT6 32-bit ARM CORTEX M3 ™ with 128 KB Flash Program, 20 KB RAM, USB, CAN, two I ² C channels, two 12 bit ADC channels, three UART channels, two SPI channels, three 16-bit timers, operating speed up to 72MHz
• 10-pin JTAG ARM connector with a RESET button
• Crystal oscillator 32,768 KHz and 8 MHZ
• Voltage regulator ( voltage regulator ) integrated 3.3V using AMS1117-3.3 IC that can supply currents up to 800mA
• USB connector with integrated USB-UART ( no ARM USB programmer is needed to use this module, it is installed on-board ), to upload the program can be done simply by pressing the button ( one button programming via USB ).
• All input/output (I / O) pins can be accessed via clear labels
• Supports power supply via USB
• Indicator LED is installed
• Backup battery connector for RTC
• Extension headers to connect with all μC ports

Chip Features

• ARM 32-bit Cortex™-M3 CPU Core
• 72 MHz maximum frequency,1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access
• Single-cycle multiplication and hardware division

Memories

• 128 Kbytes of Flash memory
• 20 Kbytes of SRAM
• Clock, reset and supply management
• 2.0 to 3.6 V application supply and I/Os
• POR, PDR, and programmable voltage detector (PVD)
• 4-to-16 MHz crystal oscillator
• Internal 8 MHz factory-trimmed RC
• nternal 40 kHz RC
• PLL for CPU clock
• 32 kHz oscillator for RTC with calibration
• Low power
• Sleep, Stop and Standby modes
• VBAT supply for RTC and backup registers
• 2 x 12-bit, 1 μs A/D converters (up to 16 channels)
• Conversion range: 0 to 3.6 V
• Dual-sample and hold capability
• Temperature sensor
  DMA
• 7-channel DMA controller
• Peripherals supported: timers, ADC, SPIs, I2Cs and USARTs
• Up to 80 fast I/O ports
• 26/37/51/80 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V-tolerant
  Debug mode
• Serial wire debug (SWD) & JTAG interfaces
• 7 timers
• Three 16-bit timers, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
• 16-bit, motor control PWM timer with dead-time generation and emergency stop
• 2 watchdog timers (Independent and Window)
• SysTick timer 24-bit down counter
• Up to 9 communication interfaces
• Up to 2 x I2C interfaces (SMBus/PMBus)
• Up to 3 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control)
• Up to 2 SPIs (18 Mbit/s)
• CAN interface (2.0B Active)
• USB 2.0 full-speed interface
• CRC calculation unit, 96-bit unique ID
