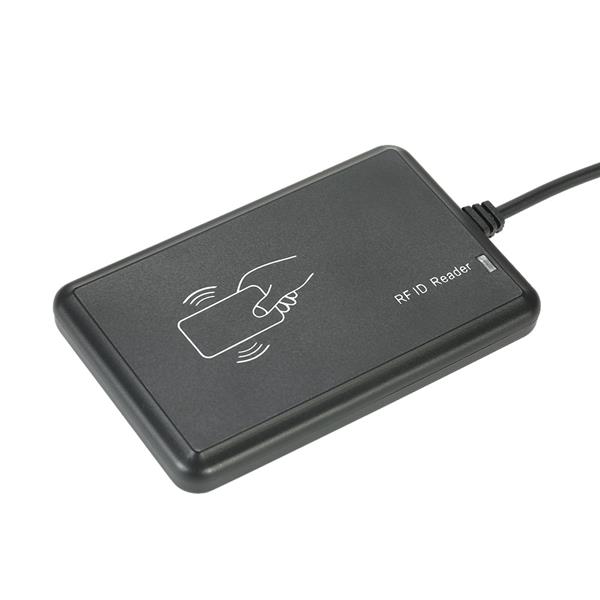

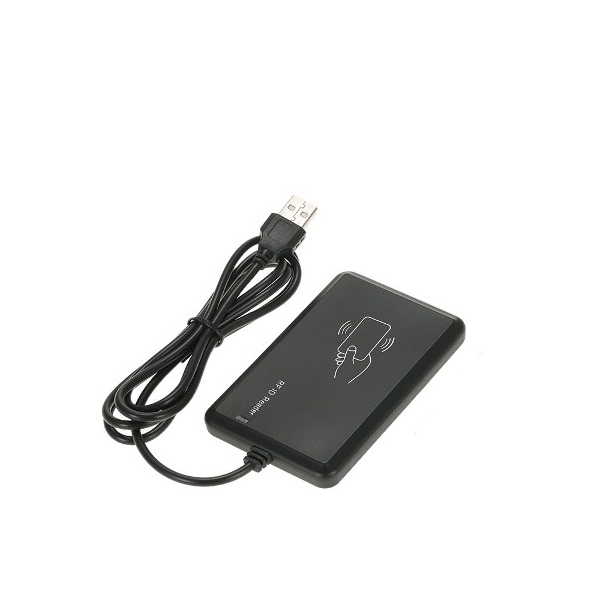

Contactless RFID Card Reader 125KHz USB Configurable EM Proximity is a desktop EM card reader with USB interface. It reads the ID number from EM4100 card or compatible card. Once card is detected, the card number will be directly sent via USB interface, just like input number from an USB keyboard. Output format is programmable with configure card, total 16 formats.
- USB interface, no driver is need.
- Read the EM card inside ID number and send to PC via USB interface.
- The output format can be selected by configure card.
- Color: Black
- Power Input: USB from PC
- Interface: USB, 106bit/s, no extra driver is need
- Working Distance: Up to 8cm
- Frequency: 125KHz
- Operation Temperature: -30°C to +60°C
- Operation Humidity: 5%-95%RH non-condensing
- Audio/Visual Indication: LED and Buzzer Output
- Card Number Output Format: Total 16 formats, refer to the label on configure card
- USB Cable Length: Approx. 120cm / 47in
- 1st Step: Connect the USB cable with the card reader to the computer USB port.
- 2nd Step: The reader will ‘drip’ sound and flash about that power successfully, and then half a second after the ‘drip’ sound and flash about that device self-test successfully, without Install any drivers, windows will automatically recognize it.
- 3rd Step: Open one EXCEL or WORLD, the card number would be input by self.
Images are for representation purpose only actual product may differ from actual product.
