ESP32 Development Board WiFi+Bluetooth-38Pin

531.00

  • 802.11b/g/n 802. 11nspeed up to 150Mbps
  • WIFI Frequency Range 2.4GHz ~ 2.5GHz
  • Clock frequency adjustment range from 80 MHz to 240 MHz, support for RTOS
  • Built-in 2-channel 12-bit high-precision ADC with up to 18 channels
  • Support UART/GPIO/ADC/DAC/SDIO/SD card/PWM/I2C/I2S interface
  • Support multiple sleep modes
  • Embedded Lwip protocol stack
  • Supports STA/AP/STA + AP operation mode
  • Supports remote firmware upgrade (FOTA)
  • General AT commands can be used quickly
  • Support secondary development, integrated Windows, Linux development

5 in stock

Warranty    – None
Shipping       – Same day
Discount      –



Available Quantity  Discount



Category:

Description

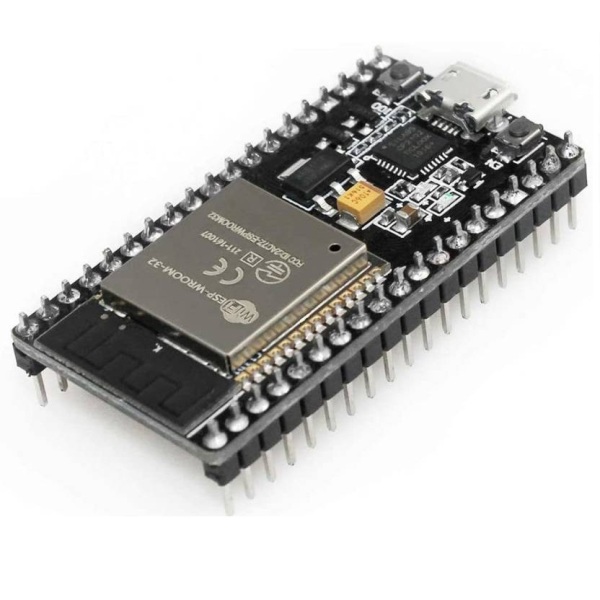

ESP32 Development Board WiFi+Bluetooth-38Pin is based on the ESP WROOM32 WIFI + BLE Module.It’s a low-footprint, minimal system development board powered by the latest ESP-WROOM-32 module and can be easily inserted into a solderless breadboard.

It contains the entire basic support circuitry for the ESP-WROOM-32, including the USB-UART bridge, reset- and boot-mode buttons, LDO regulator and a micro-USB connector. Every important GPIO is available to the developer.

The module supports data rates up to 150 Mbps and antenna output power of 20dBm for maximum wireless communication. As a result, this module has industry-leading specifications and performs well in terms of high integration, wireless transmission distance, power consumption, and network connectivity

Features :

  • Module model : ESP-WROOM-32s
  • SPI Flash : 32Mbit(default)
  • Support interface : UART/GPIO/ADC/DAC/SDIO/SD card /PWM/I2C/I2S
  • Integrated crystal oscillator : 40MHz Crystal oscillator
  • IO Port : 38
  • Antenna : Onboard antenna
  • Power Supply :Voltage 3.0V ~ 3.6V Typical 3.3V Current >500mA

Package Includes :

  • 1 x ESP32 Development Board WiFi+Bluetooth 38 Pin

Images are for representation purpose only actual product may differ from actual product.
