IRF520 MOSFET Driver Module For Arduino ARM Raspberry pi

106.20

For Arduino drive up to 24V allows the load, such as LED lights, DC motors, miniature pumps, solenoid valves
PWM dimming LED can be used to achieve stepless dimming, variable speed motor

30 in stock

Warranty None
Shipping Same day
Discount



Available Quantity  Discount



Description

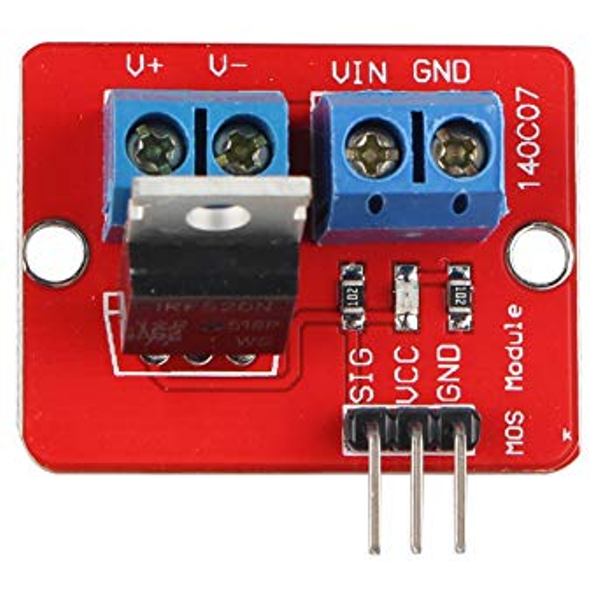

IRF520 MOSFET Driver Module is a little module (HCMODU0083) is a breakout board for the IFR520 MOSFET transistor. The module is designed to switch heavy DC loads from a single digital pin of your microcontroller. Its main purpose is to provide a low-cost way to drive a DC motor for robotics applications, but the module can be used to control most high current DC loads. Screw terminals are provided to interface with your load an external power source. An LED indicator provides a visual indication of when your load is being switched.

Specifications and Features :
  • Size: 33.5 x 31 x 18 (LxWxH) mm.
  • Weight: 10 gm.
  • Voltage: 3.3 – 5V.
  • Ports: Digital Level.
  • Output load voltage: 0-24 V.
  • Output load current: <5A (1A above need to add heat sink).
  • Platform: Arduino, MCU, ARM, raspberry pi.
  • Using original IRF520 Power MOS, you can adjust the output PWM
  • Arduino drive up to 24V allows the load, such as LED lights, DC motors, miniature pumps, solenoid valves
  • PWM dimming LED can be used to achieve step less dimming, variable speed motor
Package Includes :
  • 1 x IRF520 MOSFET Driver Module.

Images are for representation purpose only actual product may differ from actual product.
