Description

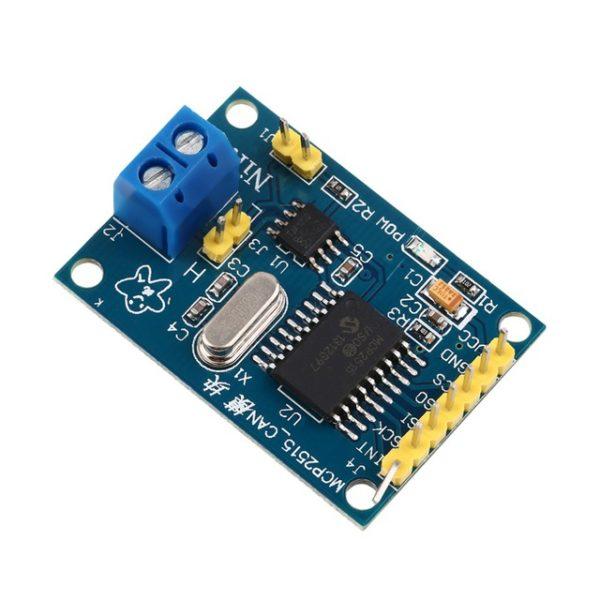

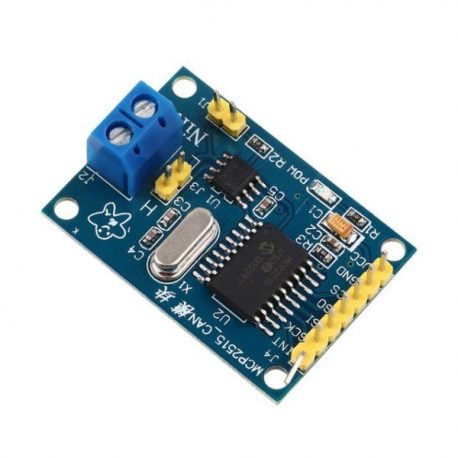

This is MCP2515 CAN Module TJA1050 Receiver SPI 51 Single Chip Program Routine Arduino with this module, you will easy to control any CAN Bus device by SPI interface with your MCU, such as Arduino UNO and Compatible with Arduino based micro-controller projects.

Pin Definitions

• VCC 5V power input pin
• GND power ground pin
• CS SPI SLAVE select pin (Active Pin)
• SO SPI master output slave input pin
• SCLK SPI clock pin
• INT MCP2515 interrupt pin

Interface

• J1 120R resistor terminal selection
• J2 CANH, CANL KF301-2P block output
• J3 CANH, CANL pin output

Package Includes:

1 x MCP2515 CAN Module TJA1050 Receiver

Images are for representation purpose only actual product may differ from actual product.
