Quadcopter Entry Level Kit

4,350.00 + GST

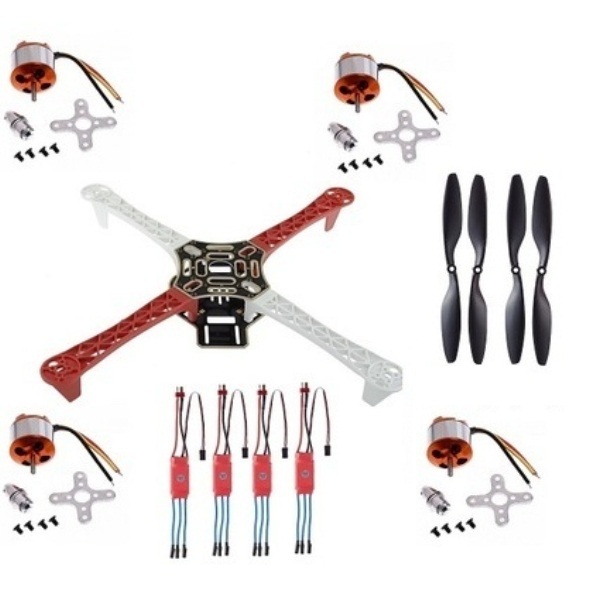

This set is a complete combo of Frame, motors, propellers and ESCs required for a quadcopter.

1 in stock

Warranty None
Shipping Same day
Discount



Available Quantity  Discount



Description

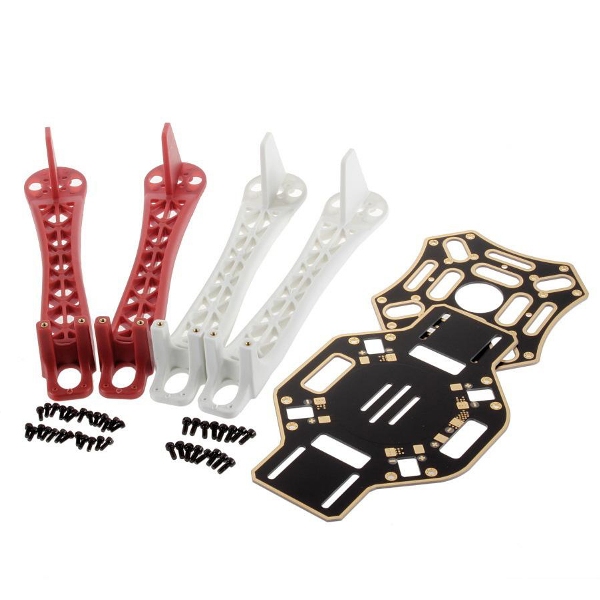

R450 QUADCOPTOR FRAME WITH INTEGRATED PCB FOR EASY WIRING:

  • Built from quality glass fiber and polyamide nylon.
  • Integrated PCB connections for direct soldering of your ESCs
  • Pre-threaded brass sleeves for all of the frame bolts.
  • Colored arms for orientation to keep you flying in the right direction.
  • Large mounting tabs on main frame bottom plate for easy camera mounting.
  • Easy assembly.
  • Width: 450mm
  • Height: 55mm
  • Weight: 270g (w/out electronics)
  • Motor Mount Bolt Holes: 16/19mm

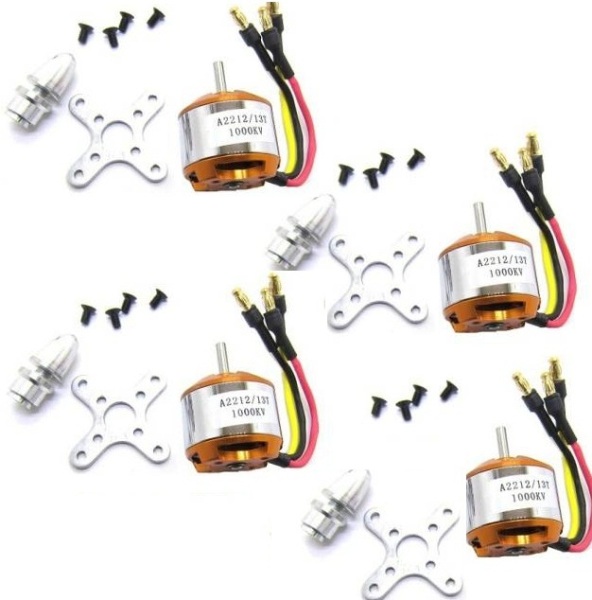

RC BRUSHLESS MOTOR 2212 1000KV WITH PROPELLER ADAPTOR:

  • Weight 52 gm
  • Runs on 2-3 Cell Li-Po battery
  • ESC Requirement minimum 25A
  • Length 43.5mm with shaft
  • Diameter 28.5mm
  • Shaft Diameter 3.17mm
  • 980 RPM/V no load speed
  • Free Load Current 2.5A
  • Maximum Efficiency : 86%
  • Thrust with 1047 Prop at 12V: 880gm
  • Included : Propeller Adaptor, Motor Mount, Mounting Screws

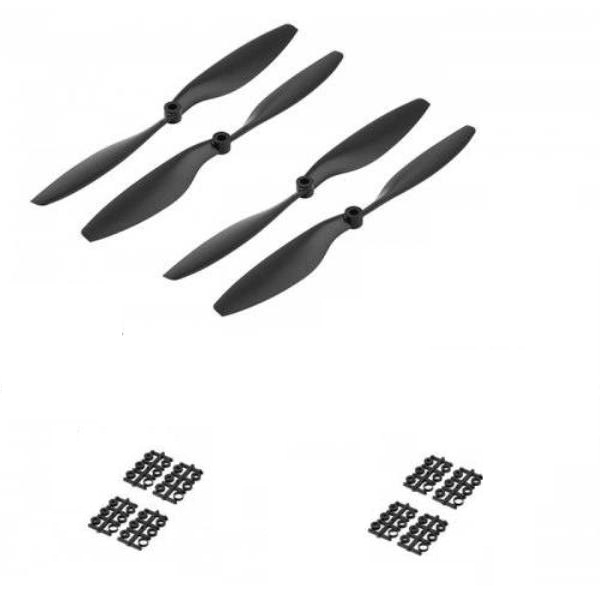

Propellers :

  • 2 Normal props (Puller) + 2 reverse props (Pusher) – total 4 props.
  • 10×4.5 inch ABS + Glass fiber plastic.

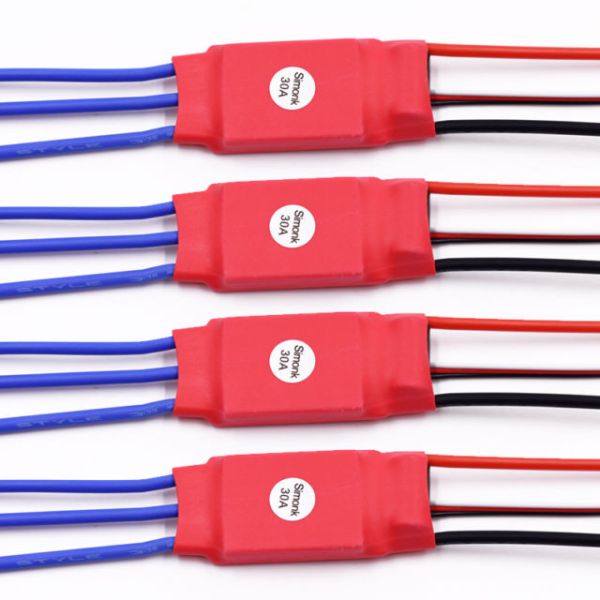

30A Brushless ESC:

  • High rate PWM
  • With simonk Firmware
  • Low resistance
  • Sixteen cells Max (with BEC disabled)
  • User programmable brake
  • Low voltage auto setting based on battery
  • Throttle range self-adjusting
  • Soft start ramp up
  • Auto motor cutoff with reset
  • Runs motor in forward or reverse
  • Safe power arming program ensures motor will not run accidentally after turn on
  • Low torque start
  • Auto shut down when signal is lost
  • Constant Current: 30A
  • BEC 3A
  • Input Volt: 6V – 12V
  • Max Current: 40A
  • Low-Voltage Cutoff: Auto detect and set
  • Size: 56mm x 24mm x 8.5mm
  • Weight: 26g

Included Product Links:

  • R450 QUADROTOR FRAME WITH INTEGRAED PCB FOR EASY WIRING
  • RC BRUSHLESS MOTOR 2212 1000KV/1200KV WITH PROPELLER ADAPTOR
  • COUNTER ROTATING PROPELLER 1045/1045R FOR QUADROTOR-MULTIROTOR
  • BRUSHLESS MOTOR SPEED CONTROLLER ESC with simonk firmware – 30A

Images are for representation purpose only actual product may differ from actual product.
