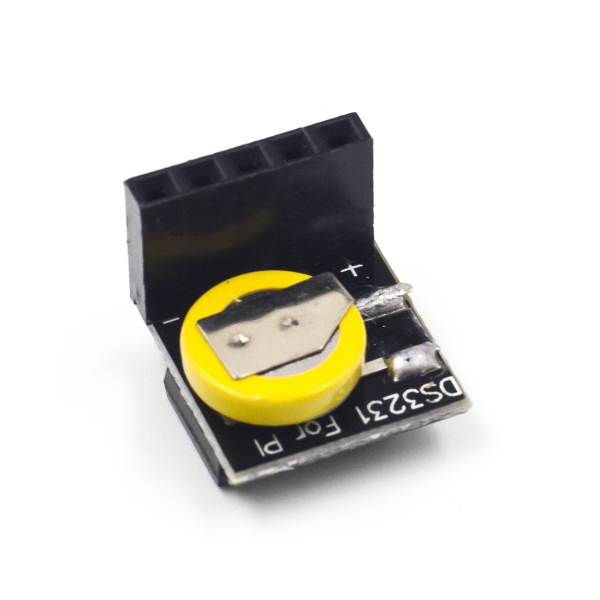

RTC Module DS3231 3.3V 5V With Battery For Raspberry Pi

250.00 + GST

5 in stock

Warranty    – None
Shipping       – Same day
Discount      –



Available Quantity  Discount



Categories: ,

Description

The RTC Module DS3231 3.3V 5V With Battery For Raspberry Pi  is a low-cost, extremely accurate I2C real-time clock (RTC) with an integrated temperature compensated crystal oscillator (TCXO) and crystal. The device incorporates a battery input, and maintains accurate timekeeping when main power to the device is interrupted. The integration of the crystal resonator enhances the long-term accuracy of the device as well as reduces the piece-part count in a manufacturing line. The RTC maintains seconds, minutes, hours, day, date, month, and year information.

The date at the end of the month is automatically adjusted for months with fewer than 31 days, including corrections for leap year. The clock operates in either the 24-hour or 12-hour format with an AM/PM indicator. Two programmable time-of day alarms and a programmable square-wave output are provided. Address and data are transferred serially through an I2C bidirectional bus.

  • Battery Backup Input for Continuous Timekeeping
  • Low-Power Consumption
  • Two Time-of-Day Alarms
  • Fast (400kHz) I2C Interface

Package Includes :

1 x RTC Module DS3231 3.3V 5V With Battery For Raspberry Pi

Images are for representation purpose only actual product may differ from actual product.
