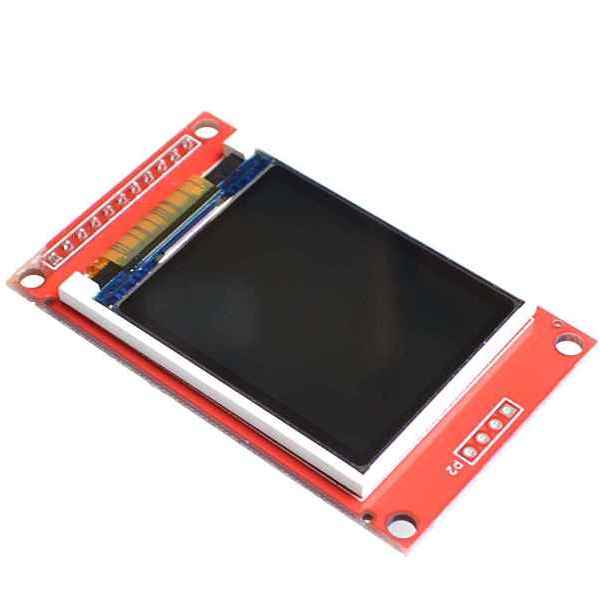

1.8″ TFT LCD Module 128 x 160 With 4 I/O

531.00

  • Display Size: 1.8″
  • Driver IC: ST7735
  • Input Voltage (V): 3.3 to 5
  • Touch : No
  • Interface Type: SPI

3 in stock

Warranty    – None
Shipping       – Same day
Discount      –



Available Quantity  Discount



Category:

Description

1.8″ TFT LCD Module 128 x 160 With 4 I/O is lovely little display breakout is the best way to add a small, colorful and bright display to any project.

Since the 1.8 Inch TFT LCD Module display uses 4-wire SPI to communicate and has its own pixel-addressable frame buffer, it can be used with every kind of microcontroller. Even a very small one with low memory and few pins available.

The 1.8″ display has 128×160 color pixels. Unlike the low cost “Nokia 6110” and similar LCD displays, which are CSTN type and thus have poor color and slow refresh, this display is a true TFT. The TFT driver (ST7735R) can display full 18-bit color (262,144 shades).

And the LCD will always come with the same driver chip so there are no worries that your code will not work from one to the other.

The breakout has the TFT display soldered on (it uses a delicate flex-circuit connector) as well as an ultra-low-dropout 3.3V regulator and a 3/5V level shifter so you can use it with 3.3V or 5V power and logic.

We also had a little space so we placed a micro SD card holder so you can easily load full-color bitmaps from a FAT16/FAT32 formatted micro SD card.

Package Includes :

  • 1 x 1.8″ TFT LCD Module 128 x 160 With 4 I/O

Images are for representation purpose only actual product may differ from actual product.
