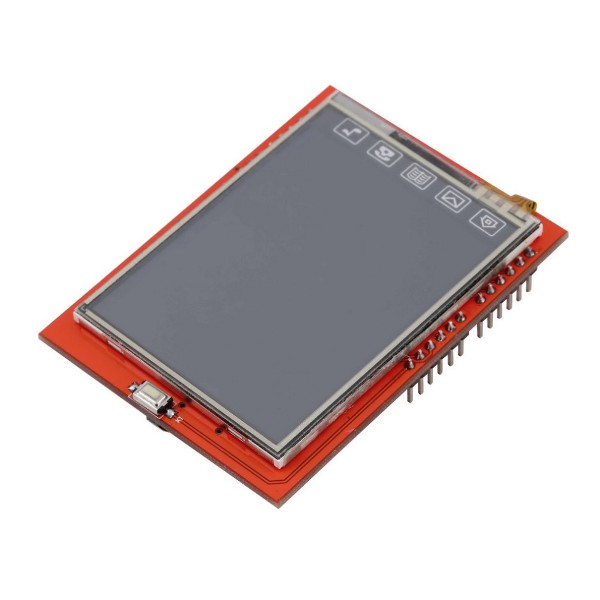

2.4 Inch TFT Touch Screen LCD Shield For Arduino

0 Reviews
3 in stock

708.00

Buy now

Product details

This 2.4 Inch Touch Lcd shield with built in microSD card connection. This TFT display is big (2.4″ diagonal) bright and colorful different  240×320 pixels with individual pixel control. It has way more resolution than a black and white 128×64 display.

  • 2.4″ (diagonal) LCD TFT display.
  • Bright, 4 white-LED backlights, on by default but you can connect a transistor to a digital pin for backlight control.
  • Colorful, 18-bit 262,000 different shades.
  • 4-wire resistive touch screen
  • 8-bit digital interface, plus 4 control lines.
  • Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the micro SD.
  • 5V compatible, use with 3.3V or 5V logic.
  • The TFT LCD touch screen comes with an SD Card Slot.



NOTE : We don’t support for the library & drivers to be used for 2.4 inch Arduino Touch LCD Shield.
