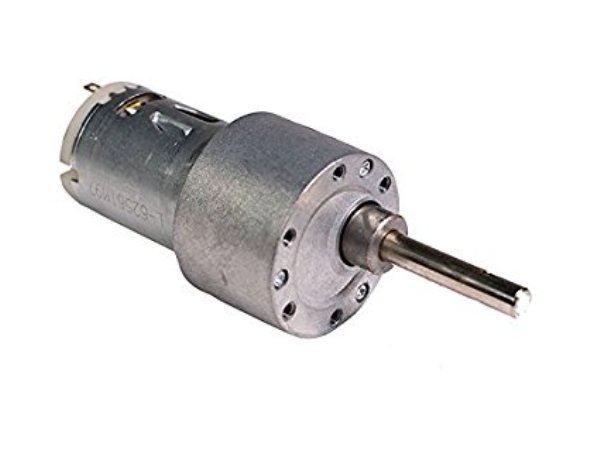

Johnson Geared Side-Shaft Motor 150RPM

Johnson Geared Side-Shaft Motor 150RPM is a very high torque motor which should be used to make big robots or robotised platform.Gear box is built to handle the stall torque produced by the motor. Shaft has a metal bushing for wear resisinance.

Specifications:
•150 RPM 12V DC Motor With Gear Box.
•18000 RPM base motor
•Shaft : 6mm
•Gearbox diameter : 37 mm.
.Motor Diameter : 28.5 mm
•Length : 63 mm without shaft
•Shaft length : 15mm
•Weight : 300 gm
•Torque :30kgcm
•No-load current = 800 mA(Max), Load current = upto 9.5 A(Max)
