MAX7219 Dot Matrix LED Module 4 In 1 Display With 5 P Line Module

400.00 + GST

Driver Chip: MAX 7219, Input Voltage: 3.7 to 5.3 V, Input Current: 320 mA, Display Dimensions: 32 x 32 x 6 (L x W x H) mm, PCB Dimensions: 128×32 (L x W) mm

3 in stock

Warranty None
Shipping Same day


Available Quantity  Discount

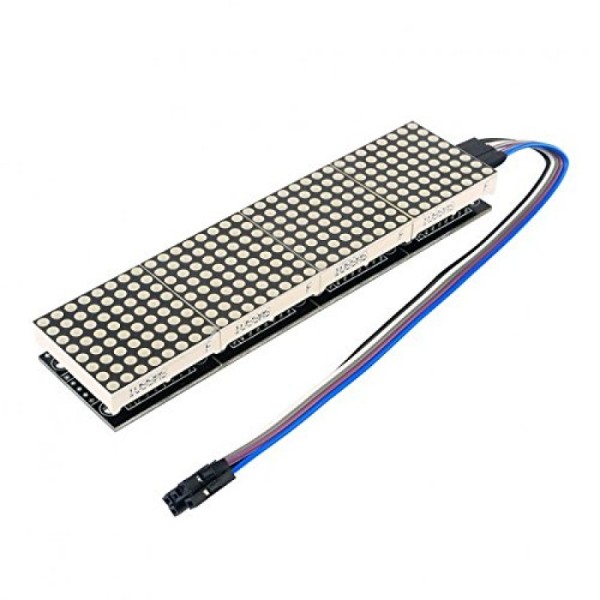

MAX7219 Dot Led Matrix Module 4 In 1 Display with 5 P Line Module is Dot Led Matrix Module incorporating MAX 7219 Driver chip. By using this dot LED module in your upcoming project,  you will be able to add some great cool animation.

The individual module features 8×8 LED’s, each controlled very precisely by the MAX 7219 driver to generate the color pattern you wish. The great advantage of using this is users will have control over all of the 64 LED by just connecting 3 output communication wires to micro-controllers like Arduino etc.

This product has 4 Dot Matrix LED’s cascaded to form a single LED Display to allot more area to the user on the display.

Connecting the two modules is also very easy. Only connect the output pins of the previous breakout board to the input pins of the new module, thus with such arrangement, you can connect as many DOT LED Modules to the Arduino as you wish!!! Great……

The MAX7219 Dot Led Matrix Module is a serial input common-cathode driver that interfaces micro-controllers to LED matrices. All common micro-controllers can be connected to this module by using a 4-wire serial interface. Each output can be addressed without refreshing the entire display. This module requires only 3 I/O lines for driving the display, making it ideal for your micro-controller projects. Only one external register is used to set the segment current of each LED.

Requires only three IO ports can drive a dot! No flashing dot matrix display! Support cascade!

Pin Connection

Dot LED Module to the Arduino

VCC           5V
GND          GND
DIN            Pin 12
CS             Pin 10
CLK          Pin 11

Package included:

1 x MAX7219 Dot Matrix LED Module 4 In 1 Display With 5 P Line Module

Images are for representation purpose only actual product may differ from actual product.
