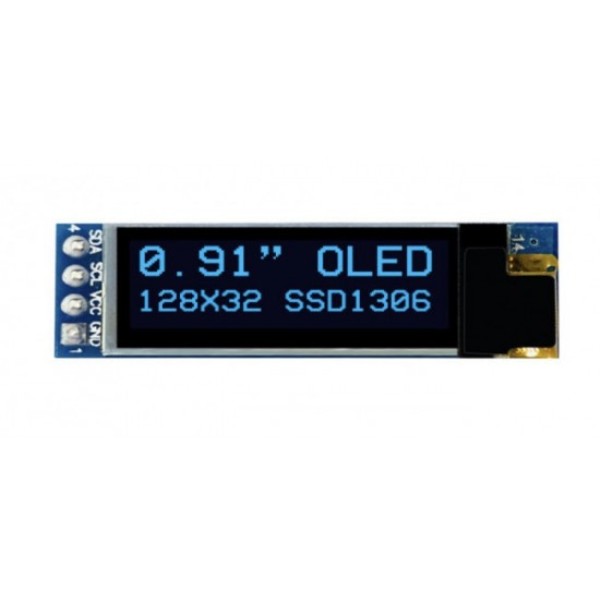

0.91″ I2C/IIC Serial 4-Pin OLED Display Module

295.00

  • Size: 0.91 inch
  • Resolution: 128 x 32
  • Controlling Chip: SSD1306
  • Driving Voltage: 3-5V
  • Interface Type: IIC

3 in stock

Warranty    – None
Shipping       – Same day
Discount      –



Available Quantity  Discount



Category:

Description

This 0.91″ I2C/IIC Serial 4-Pin OLED Display Module is an OLED monochrome 128×32 dot matrix display module with I2C Interface. It is perfect when you need an ultra-small display.  The driver IC is SSD1306 with the I2C interface. Comparing to LCD, OLED screens are way more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, slim outline, wide viewing angle, wide temperature range, and low power consumption. It is compatible with any 3V-5V microcontroller, such as Arduino.

Pin Definition:

  • 1.GND: Power ground
  • 2.VCC: Power positive
  • 3.SCL: Clock wire
  • 4.SDA: Data wire.

Package Includes:

  • 1 x 0.91″ I2C/IIC Serial 4-Pin OLED Display Module

Images are for representation purpose only actual product may differ from actual product.
