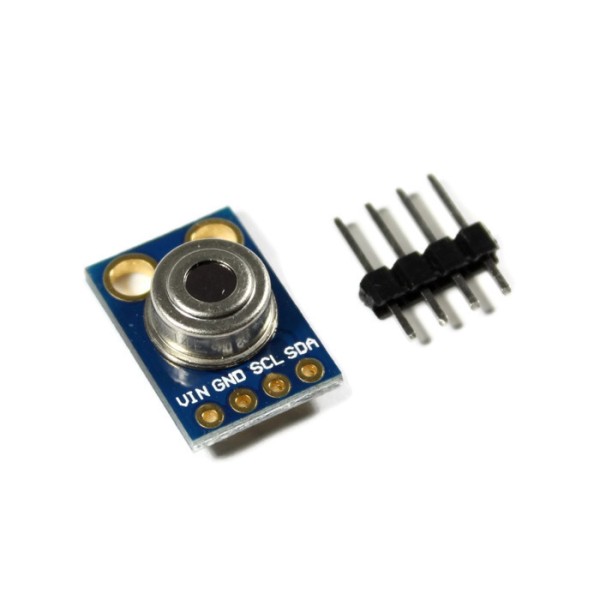

Contactless Temperature Sensor New MLX90614 Module

849.60

3 in stock

Warranty None
Shipping Same day
Discount



Available Quantity  Discount



Category:

Description

The Contactless Temperature Sensor MLX90614 is an Infra red thermometer for non contact temperature measurements. Both the IR sensitive thermopile detector chip and the signal conditioning ASIC are integrated in the same TO-39 can. Integrated into the MLX90614 are a low noise amplifier, 17-bit ADC and powerful DSP unit thus achieving high accuracy and resolution of the thermometer. The thermometer comes factory calibrated with a digital SMBus output giving full access to the measured temperature in the complete temperature range(s) with a resolution of 0.02°C. The user can configure the digital output to be PWM. As a standard, the 10-bit PWM is configured to continuously transmit the measured temperature in range of -20 to 120 °C, with an output resolution of 0.14 °C

Features:

  • Works from 3.3V to 5V input
  • Standard I2C interface with built 2x pull up resistors
  • Operating Voltage: 3V- 5V
  • Operating Current: 2mA
  • Communication protocol: I2C.
  • Sensor working temperature: -40 to +125 Degree C
  • dimensions 11mm x 17 mm
Package Includes:

1 x Contactless Temperature Sensor New MLX90614 Module

Images are for representation purpose only actual product may differ from actual product.
