MAX6675 Module With K Type Thermocouple Sensor

354.00

  • Internal integrated cold junction compensation circuit;
  • With a simple three serial SPI interface;
  • Temperature signal can be converted into 12-bit digital
  • Embedded thermocouple break detection circuitry.
  • High impedance differential inputs.
  • Operating Voltage(VDC): 3 to 5.5
  • Temperature Range(°C): 0 to +1024
  • Cold Junction Compensation Range(°C): -20 to +80

10 in stock

Warranty None
Shipping Same day
Discount



Available Quantity  Discount



Category:

Description

This MAX6675 Module K Type Thermocouple Sensor Measure 1024°C Temperature sensor makes use of the Maxim MAX6675 K-Thermocouple to digital converter IC to provide a microcontroller compatible digital serial interface (SPI compatible) for giving an accurate temperature compensated measurement of the supplied K-Type thermocouple sensor.

It has a 12-bit resolution providing temperature readings from 0°C to 1024°C (max temperature of the supplied sensor is 450°C) with a resolution of 0.25°C.

Screw terminals allow for connection to the thermocouples spade connectors and a 5 pin standard 0.1″ header provides an interface to a microcontroller such as an Arduino development board.

Features :

  • Internal integrated cold junction compensation circuit;
  • Temperature signal can be converted into 12-bit digital
  • Embedded thermocouple break detection circuitry.
  • K-type temperature probe
  • Simple SPI serial output temperature.
  • High impedance differential inputs.
  • Thermocouple break detection.
  • 2000V of ESD signal.

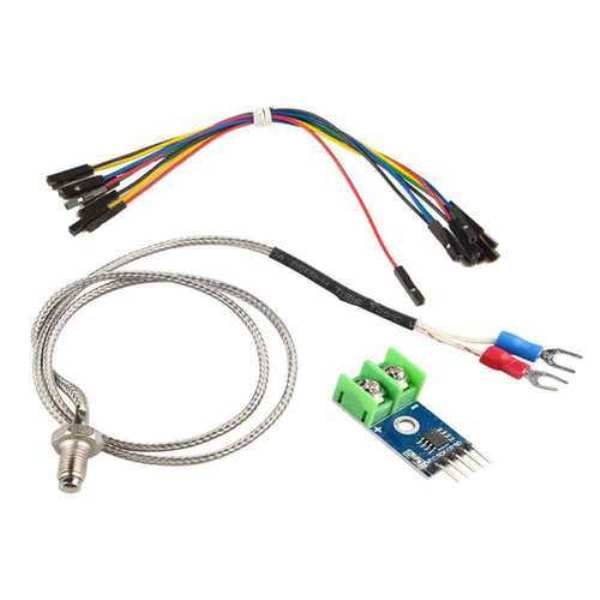

Package Includes :

  • 1 x MAX6675 Module.
  • 1 x K type Thermocouple.
  • 4 x F-F Jumper Cable.

Images are for representation purpose only actual product may differ from actual product.
