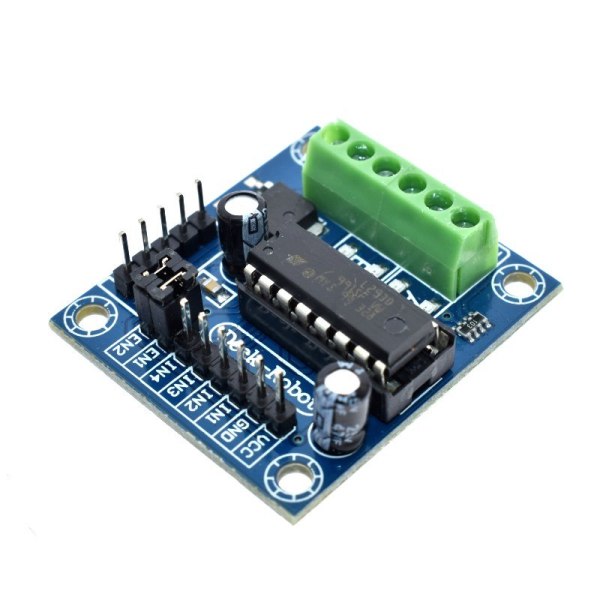

Motor Drive Board L293D Module For Arduino UNO MEGA 2560

Motor Drive Board L293D Module For Arduino UNO MEGA 2560 is a Device is a monolithic integrated high voltage, high current four channel driver designed to accept standard DTL or TTL logic levels and drive inductive loads (such as relays solenoids, DC and stepping motors) and switching power transistors.

To simplify use as two bridges each pair of channels is equipped with an enable input. A separate supply input is provided for the logic, allowing operation at a lower voltage and internal clamp diodes are included. This device is suitable for use in switching applications at frequencies up to 5 kHz.

Specifications and Features:

1. Input voltage DC4.5-25V
2. 600mA output current capability per channel
3. 1.2A peak output current(non-repetitive) per channel
4. Enable facility
5. Over temperature protection
6. Logical “0” input voltage up to 1.5V(High noise immunity)
7. Internal clamp diodes
8. Dimensions mm (LxWxH): 40 x 35 x 12
9. Weight: 11g

Package Includes:

1 x Motor Drive Board L293D Module For Arduino UNO MEGA 2560
