YF-S201 Hall Effect Water Flow Meter / Sensor

250.00 + GST

3 in stock

Price 18% GST Extra
Warranty None
Shipping Same day
Discount



Available Quantity  Discount



Categories: ,

Description

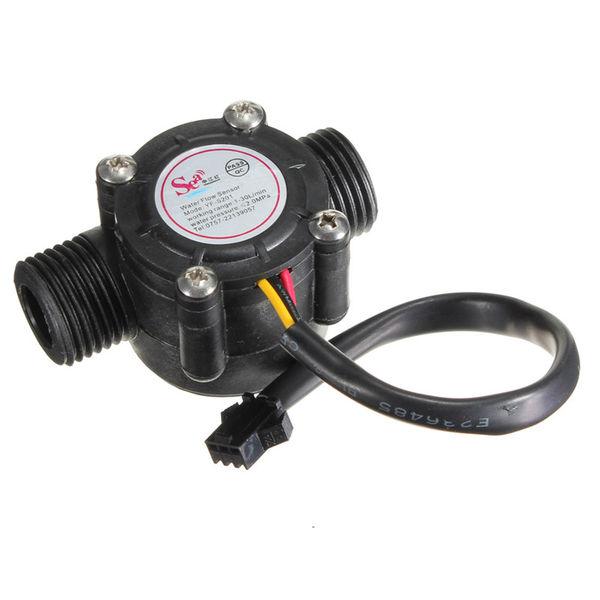

YF-S201 Hall Effect Water Flow Meter / Sensor

Use this Water Flow Sensor YF-S201 to measure the rate to flow of liquids. The sensor has a digital interface which makes it simple and easy to connect it to a microcontroller, Arduino or a Raspberry Pi. It requires no extra circuit to start measuring liquid flow rate. The sensor will have to be attached in the liquid line whose flow is to be measured. A pinwheel inside the sensor moves as the liquid flows through the sensor. A hall effect sensor within the sensor senses the rotation of the pinwheel and outputs a digital pulse for every rotation. By counting the pulses from the sensor, you can easily sense liquid flow through the sensor. This allows easy interface to microcontroller, Arduino, Raspberry Pi, etc .
The sensor comes with three wires – Red (5V-24V), Black (Ground) and Yellow (Output pulse)
This sensor is great for water testing, water cooling systems, measure liquid flow, etc
Features

  • Operating Voltage: DC4.5 5V-24V
  • Operating Current: 15 mA (DC 5V)
  • External Threads: 1/2″
  • High amplitude: 4.6V
  • Low amplitude: 0.5V

Images are for representation purpose only actual product may differ from actual product.
