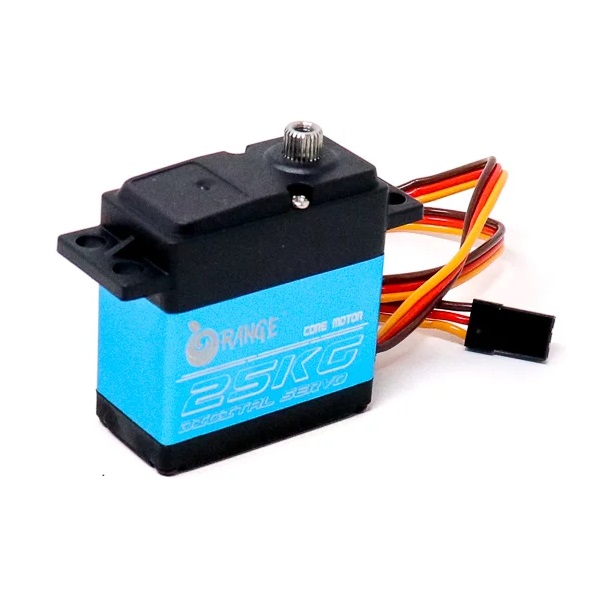

25Kg High Torque Digital Metal Gear Servo


  • Voltage Range (VDC):  4V-8.4V
  • Rated Torque: @ 7.4V
  • Gears Type: Steel Metal
  • Connector: JR
  • Command Signal: PWM
  • Size (L x W x H) mm: 55 x 20 x 43

4 in stock

Warranty    – None
Shipping       – Same day
Discount      –


Available Quantity  Discount




25Kg High Torque Waterproof Digital Metal Gear Servo provides 25kg torque at 7.4Vdc & 20.5kg at 6.0Vdc.

  • Brown/Black = Negative
  • Red = Positive
  • Orange/White = Signal


Weight 62g ± 1g
Size 55*20*43mm
Control System (+)Pulse Width Control 1500usec Neutral
Operating Voltage 6.0~7.4Volts
Operating Temperature Range (-)10 to +50 degree C
Operating Speed (6.0V) 0.14sec/60° at no load
Operating Speed (7.4V) 0.12sec/60° at no load
Stall Torque (6.0V)
Stall Torque (7.4V)
Operating Angle side pulse traveling 500 usec
Direction Anticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V) 20mA/idle and 100mA no load operating
Current Drain (7.4V) 20mA/idle and 150mA no load operating
Stall Current 2.5A/2.8A
Dead Band Width 4usec
Bearing Type Dual ball bearing
Horn gear spline 25T
Gear Type Metal
Connector Wire Length 300mm±5mm

Package Included:

  • 1 X 25Kg High Torque Digital Metal Gear Servo

Images are for representation purpose only actual product may differ from actual product.
